DS-A83 Series ICVS Quick Start Guide
10

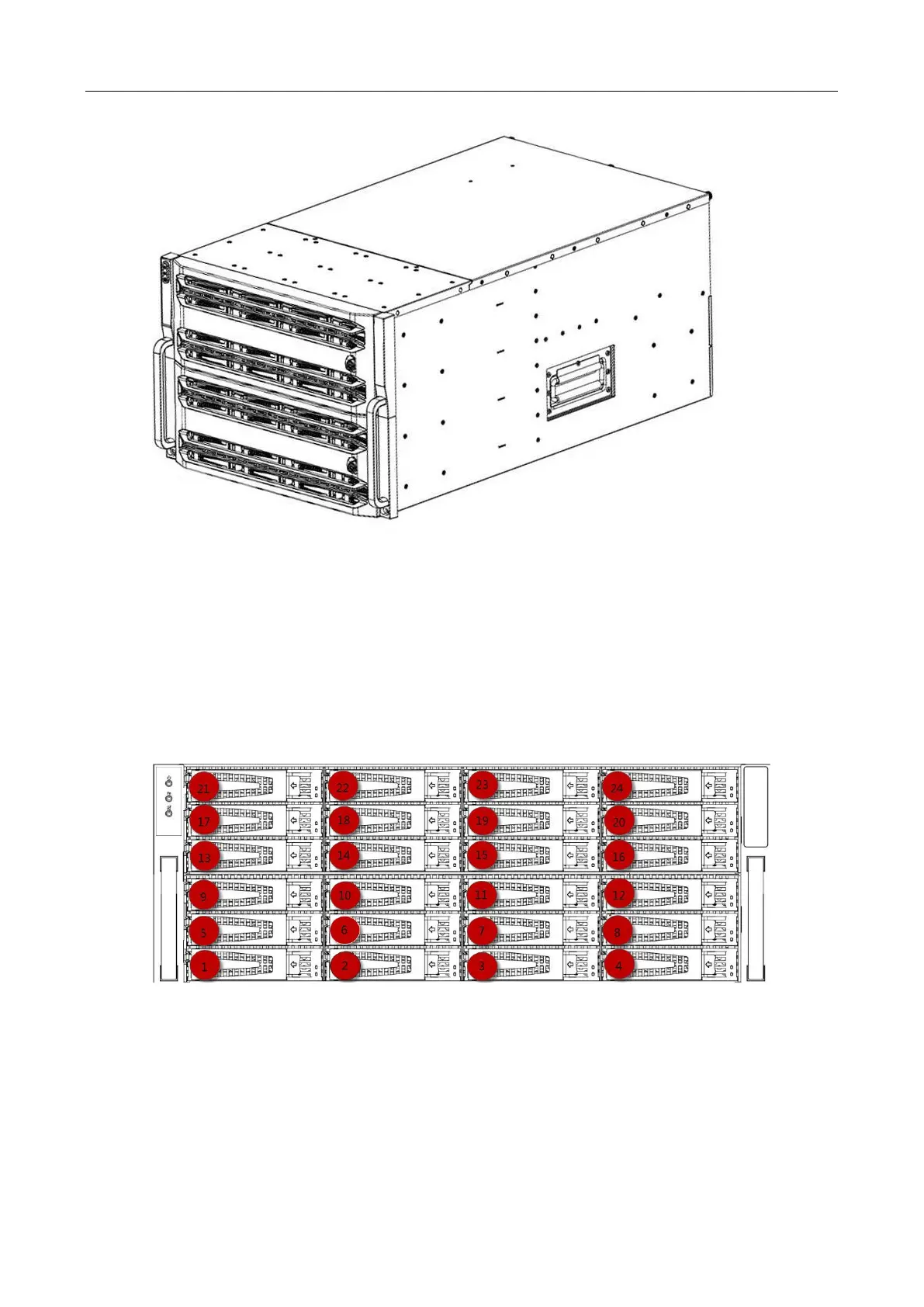

Figure 2-2 DS-A81048S-ICVS, DS-A83048S-ICVS, DS-A81048S-ICVS/Micro, DS-A83048S-ICVS/Micro
Overall View
2.2 Front Panel
2.2.1 DS-A83024S-ICVS
There are 24 HDD slots on the front panel for DS-A83024S-ICVS, DS-A81024S-ICVS,
DS-A81024S-ICVS/Micro, DS-A83024S-ICVS/Micro. Digits in figure show the HDD sequence.
Figure 2-3 Front Panel
2.2.2 DS-A83048S-ICVS
There are 48 HDD slots on the front panel for DS-A81048S-ICVS, DS-A83048S-ICVS,
DS-A81048S-ICVS/Micro, DS-A83048S-ICVS/Micro. Digits in figure show the HDD sequence.
