3.1.4 Description of Rear Panel
Rear Panel of Single Power Supply

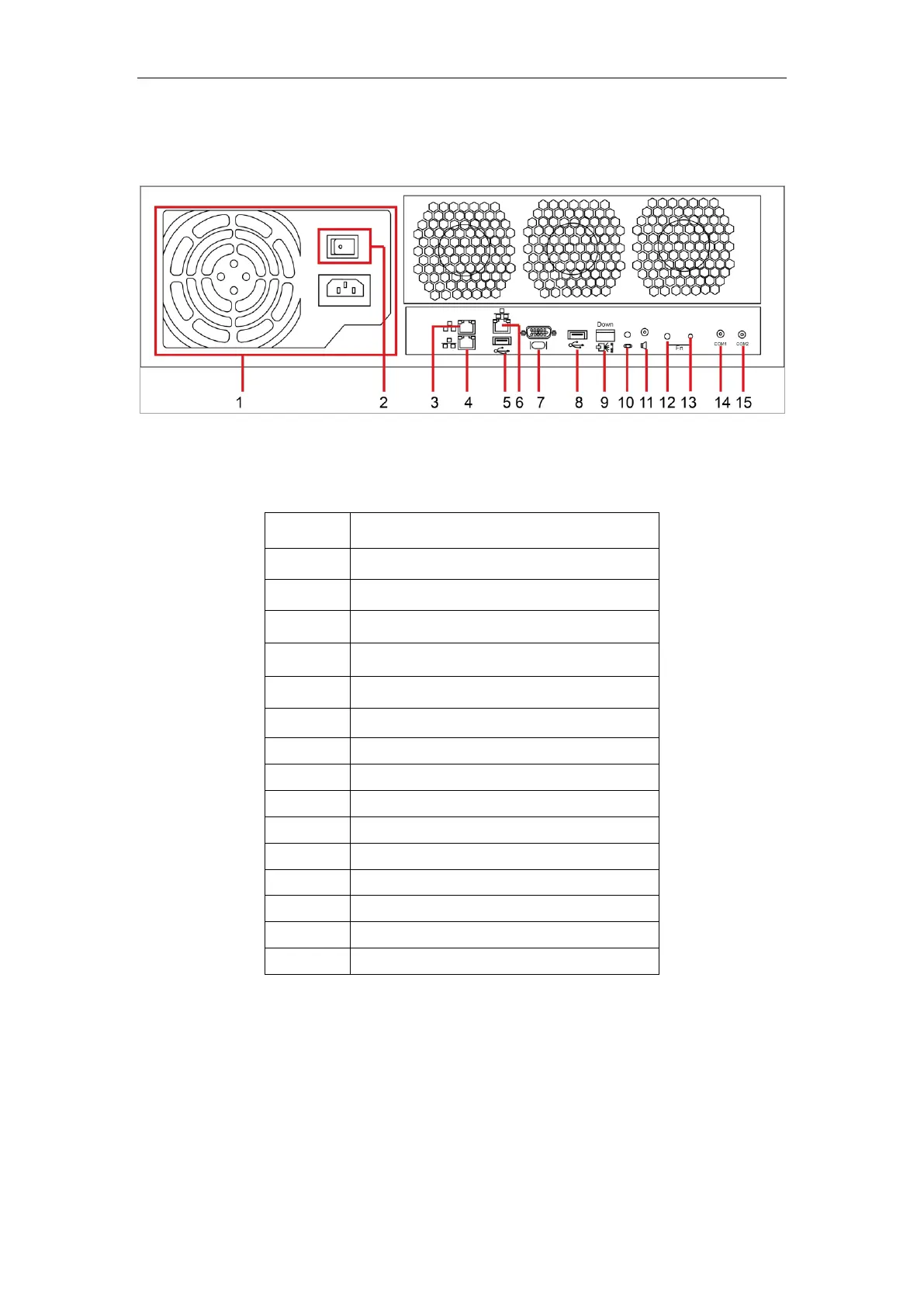

Figure 3. 4 Rear Panel of Single Power Supply
Table 3-2 Description of Rear Panel
Icon
Description
1
Power Supply
2
Power Switch
3
Data Port 2
4
Data Port 1
5
USB Interface
6
Management Port
7
VGA Interface
8
USB Interface
9
Expansion Port
10
Expansion Port Indicator
11
Audio Out
12
FN Device Positioning Indicator
13
FN Device Positioning Button
14
COM 1: Hyper Terminal
15
COM 2: UPS
