Rear Panel of Redundant Power Supply

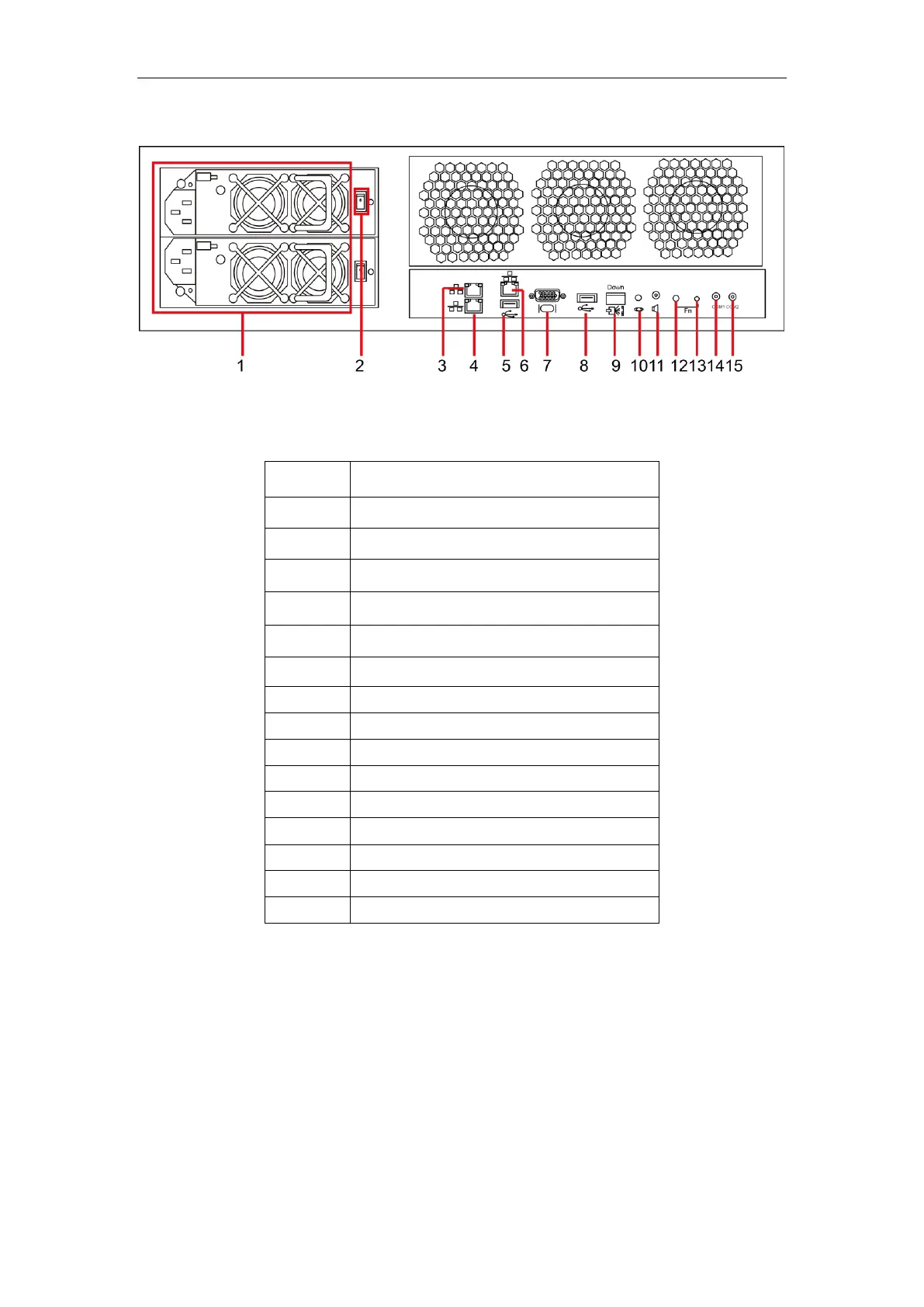

Figure 3. 5 Rear Panel of Redundant Power Supply
Table 3-3 Description of Rear Panel
Icon
Description
1
Power Supply
2
Power Switch
3
Data Port 2
4
Data Port 1
5
USB Interface
6
Management Port
7
VGA Interface
8
USB Interface
9
Expansion Port
10
Expansion Port Indicator
11
Audio Out
12
FN Device Positioning Indicator
13
FN Device Positioning Button
14
COM 1: Hyper Terminal
15
COM 2: UPS
3.2 Installation Requirement
Before installation, please prepare the following equipment and accessories:
1. Network Storage System
2. Power cord
3. 100M/1000M network cable (CAT 5e recommended)
The following accessories are optional or user-provided:
