HIKVISION DS-K1102M Quick Start Guide

Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by Wiegand
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
3 of 5

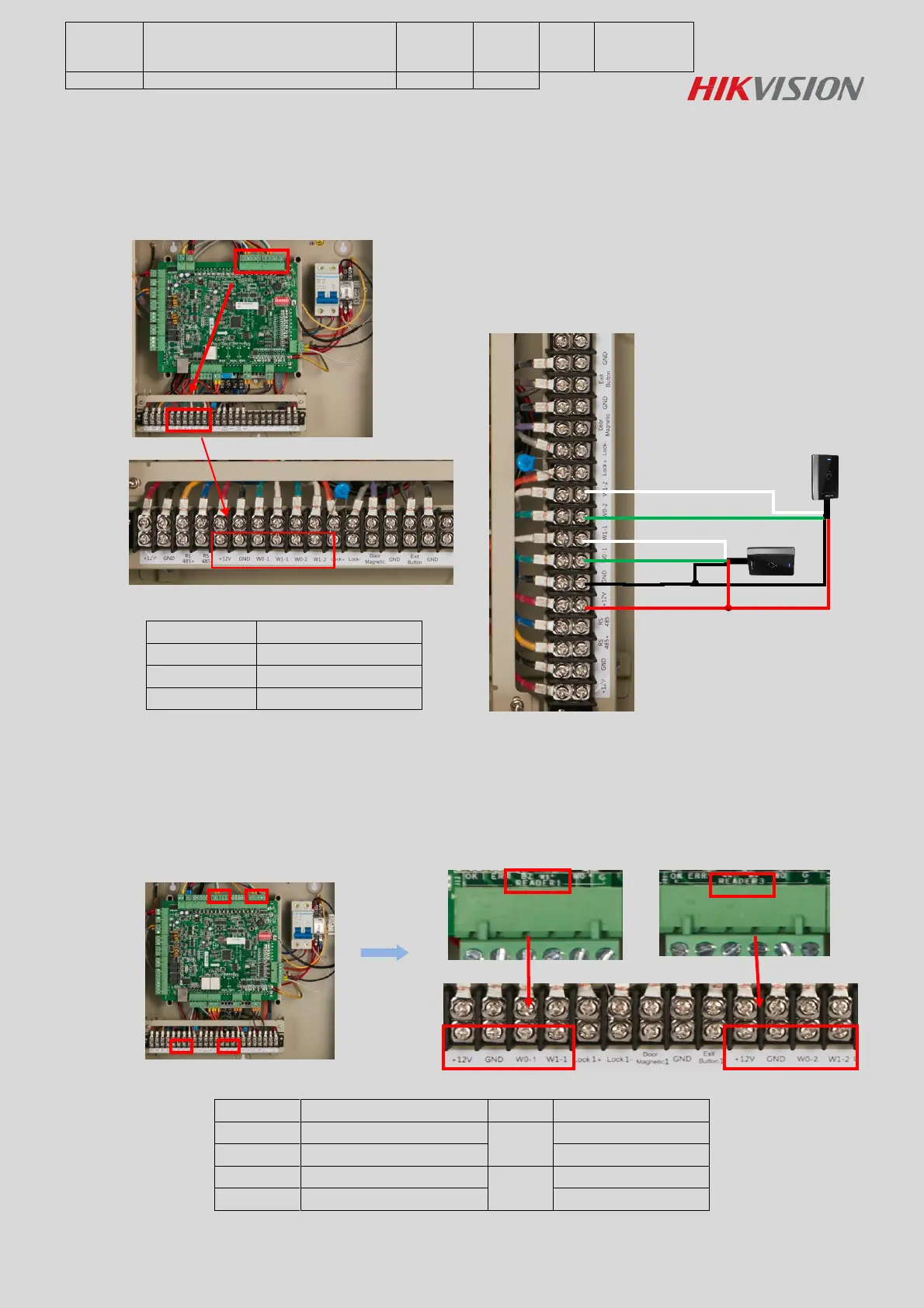

Step 2: Wiegand Wiring
DS-K2601
We extend Wiegand interface to the wiring distribution for easier cable connection, you can find +12V,
GND, W0-1, W1-1, W0-2 and W1-2 interfaces as following picture:
DS-K2602
For double-door access controller, there are four wiegand interfaces in DS-K2602 access controller, but
we only extend two wiegand interfaces to the wiring distribution for easier cable connection, because of
space limitation; for details of the correspondence, please check following pictures and table:
Interface
Wiring Distribution
Door
Reader
READER 1
+12V, GND, W0-1 & W1-1
Door 1
Entrance card reader1
READER 2
Exit card reader2
READER 3
+12V, GND, W0-2 & W1-2
Door 2
Entrance card reader3
READER 4
Exit card reader4
Interface
Reader
+12V & GND
Power supply for reader
W0-1 & W1-1
Entrance card reader1
W0-2 & W1-2
Exit card reader2
W1
W0
GND
+12V
W1
W0
READER1
READER3

HIKVISION DS-K1102M Specifications

General

Internal	No
Certification	IP64 CE, FCC
Product color	Black
LED indicators	Power, Status
Housing material	Acrylonitrile butadiene styrene (ABS)
Compatible memory cards	-
Input voltage	12 V
Output current	500 mA
Power source type	DC
Power consumption (max)	2 W
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Interface	RS485 / Wiegand
Supported protocols	Mifare
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Built-in processor	Yes
International Protection (IP) code	IP64
Frequency	13.56 MHz
Maximum read range	50 mm

Weight and Dimensions

Depth	121 mm
Width	86.5 mm
Height	14 mm
Weight	140 g
