HIKVISION DS-K1102M Quick Start Guide

Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by Wiegand
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
4 of 5

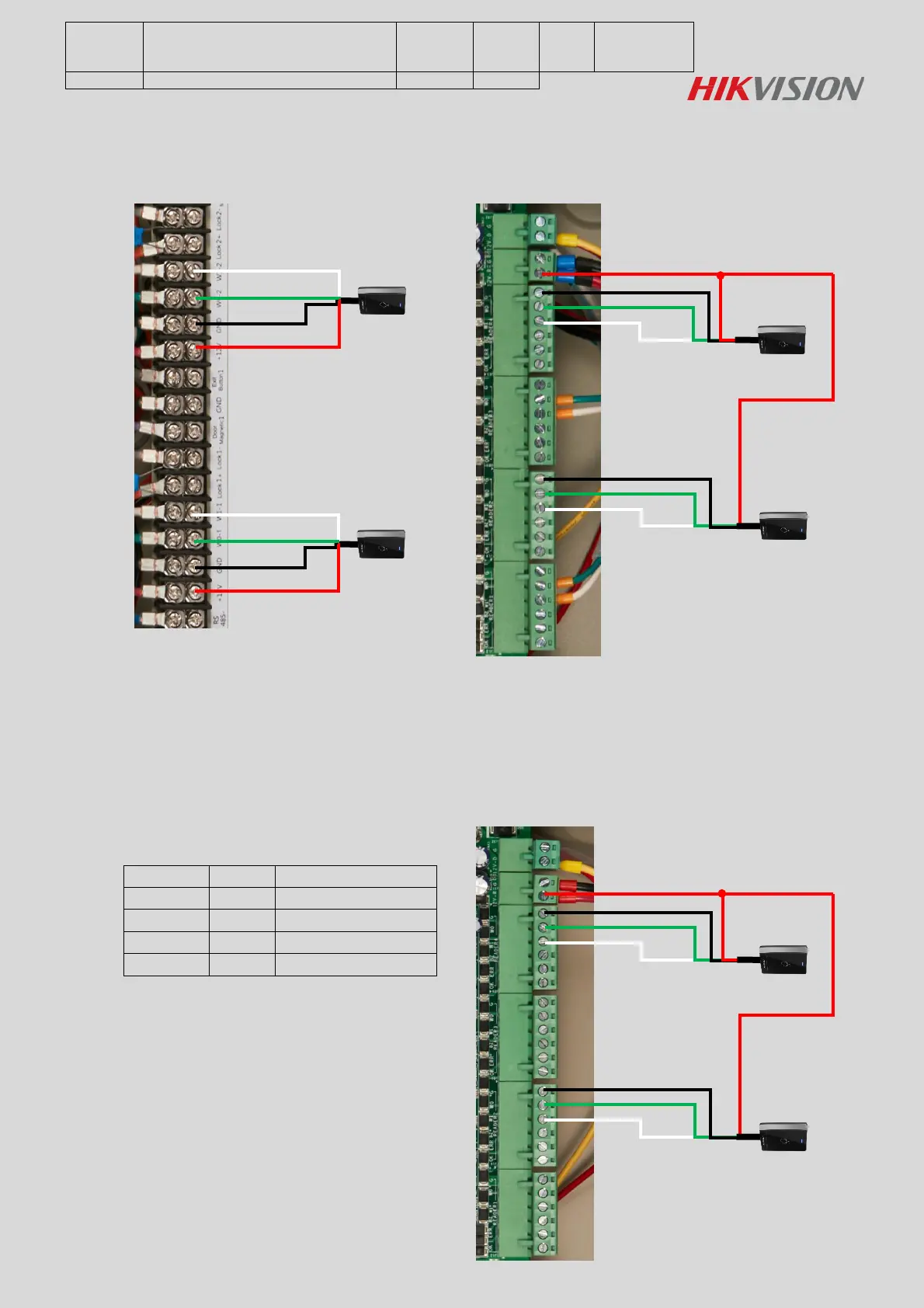

If customers want to swipe card for entering and exiting, we suggest cutomer connect entrance card
reader to W0-1/W1-1 and W0-2/W1-2 interafces in wiring distribution of access controller, and connect
exit card reader to READER2 and READER4 in mainboard of access controller.
Note：We can also connect exit button to wiring distribution in access controller for exiting.
DS-K2604
For four-door access controller, there are four wiegand interfaces in mainboard of access cotroller and
these four wiegand interfaces are designed for entrance card reader; And there are no extended wiegand
interfaces because of space limitation.
Interface
Door
Reader
READER 1
Door 1
Entrance card reader1
READER 2
Door 2
Entrance card reader3
READER 3
Door 3
Entrance card reader5
READER 4
Door 4
Entrance card reader7
W1
W0
GND
+12V
W1
W0
GND
+12V
W0
W1
GND
+12V
W0
W1
GND
+12V
READER1
READER2
READER3
READER4
W0
W1
GND
+12V
W0
W1
GND
+12V
READER1
READER2
READER3
READER4

HIKVISION DS-K1102M Specifications

General

Internal	No
Certification	IP64 CE, FCC
Product color	Black
LED indicators	Power, Status
Housing material	Acrylonitrile butadiene styrene (ABS)
Compatible memory cards	-
Input voltage	12 V
Output current	500 mA
Power source type	DC
Power consumption (max)	2 W
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Interface	RS485 / Wiegand
Supported protocols	Mifare
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Built-in processor	Yes
International Protection (IP) code	IP64
Frequency	13.56 MHz
Maximum read range	50 mm

Weight and Dimensions

Depth	121 mm
Width	86.5 mm
Height	14 mm
Weight	140 g
