HIKVISION DS-K1103M Installation Manual

10

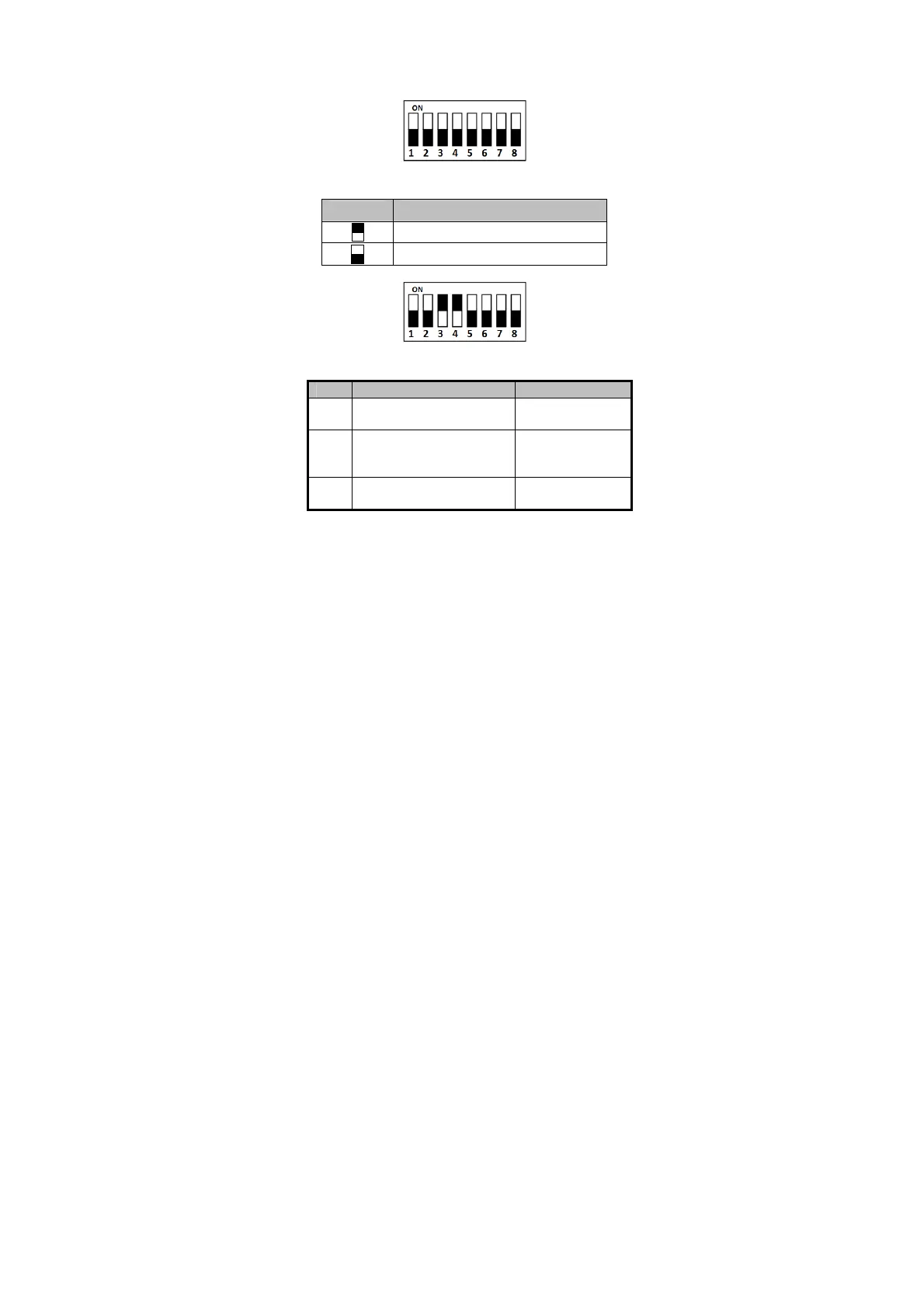

3.2 Introduction for DIP Switch
The DIP switch module is shown below. The No. of DIP switch
from left to right is 1 ~ 8.
Figure 3-2 DIP Switch Module
Table 3-1 Description of DIP Switch
Icon Description
Represent 1 in binary mode
Represent 0 in binary mode
For example, binary value of the following status is: 0000 1100.
Figure 3-3 DIP Switch Module
Table 3-2 Description of DIP Switch
No.
Description
DIP
Switch Status
1 ~ 4 Address of RS-485
1: 1
0: 0
5
Read card No. or file in card.
(Only available for CPU card
read
er.
)
1: read card No;
0: read file in card.
6
Wiegand protocol or RS-485
protocol.
1: Wiegand protocol;
0
: RS
-
485
p
rotocol.
