HIKVISION DS-K1104MK Quick Start Guide

Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by Wiegand
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
4 of 5

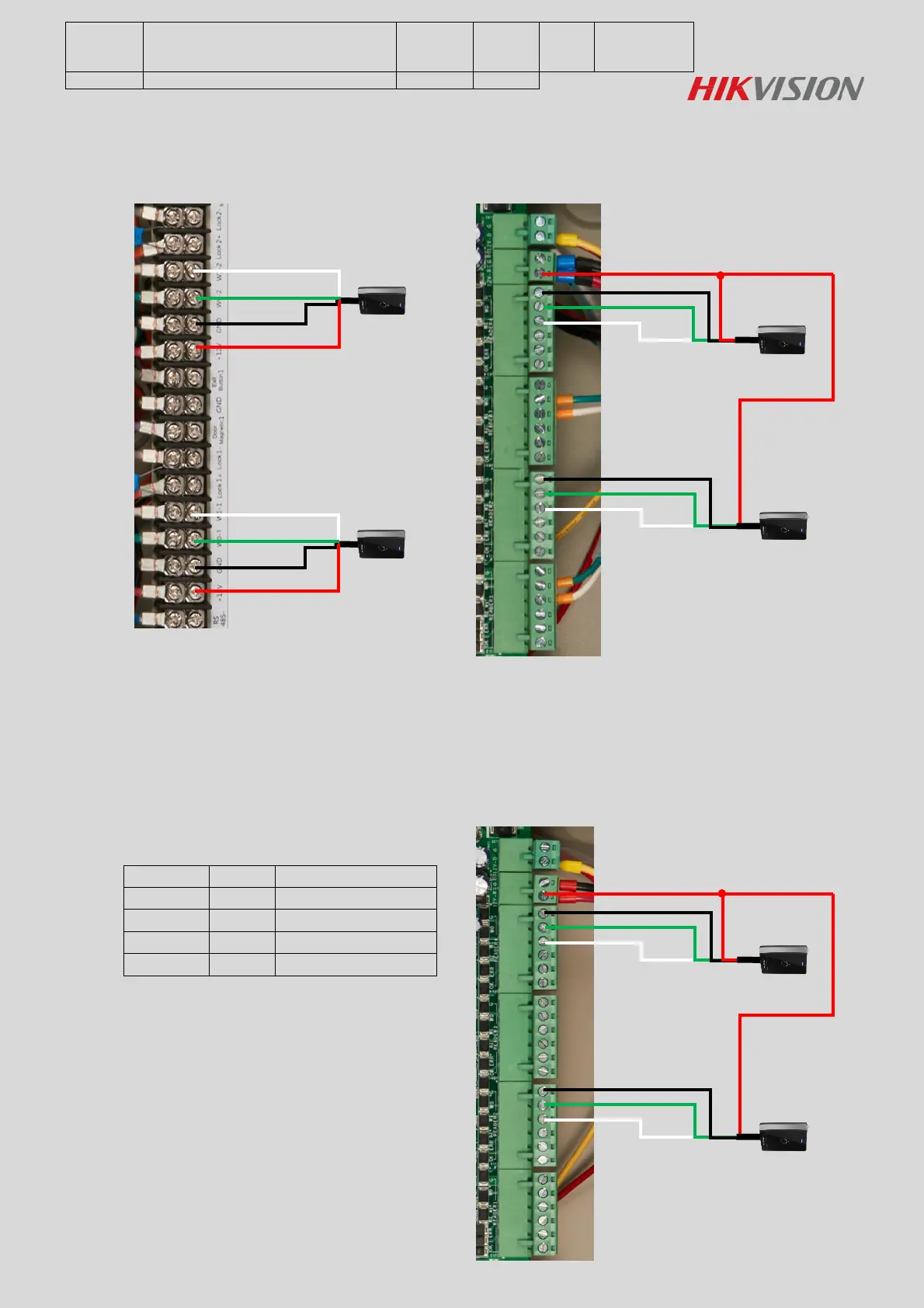

If customers want to swipe card for entering and exiting, we suggest cutomer connect entrance card
reader to W0-1/W1-1 and W0-2/W1-2 interafces in wiring distribution of access controller, and connect
exit card reader to READER2 and READER4 in mainboard of access controller.
Note：We can also connect exit button to wiring distribution in access controller for exiting.
DS-K2604
For four-door access controller, there are four wiegand interfaces in mainboard of access cotroller and
these four wiegand interfaces are designed for entrance card reader; And there are no extended wiegand
interfaces because of space limitation.
Interface
Door
Reader
READER 1
Door 1
Entrance card reader1
READER 2
Door 2
Entrance card reader3
READER 3
Door 3
Entrance card reader5
READER 4
Door 4
Entrance card reader7
W1
W0
GND
+12V
W1
W0
GND
+12V
W0
W1
GND
+12V
W0
W1
GND
+12V
READER1
READER2
READER3
READER4
W0
W1
GND
+12V
W0
W1
GND
+12V
READER1
READER2
READER3
READER4

HIKVISION DS-K1104MK Specifications

General

Quantity per pack	1 pc(s)
Internal	No
Product color	Black, Silver
Built-in processor	Yes
Compatible memory cards	-
RS-485 ports	1
Type	Basic access control reader
Certification	FCC, CE
LED indicators	Status
RFID frequency	13.56 MHz
Authentication type	Access chip/card, Password
Supported protocols	Mifare
Keypad number of keys	12
RFID reading distance	50 mm
International Protection (IP) code	IP65
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption	0.5 mA

Weight and Dimensions

Depth	23 mm
Width	76 mm
Height	118 mm
Weight	520 g
