HIKVISION DS-K1104MK Manual

Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by RS-485
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
1 of 4

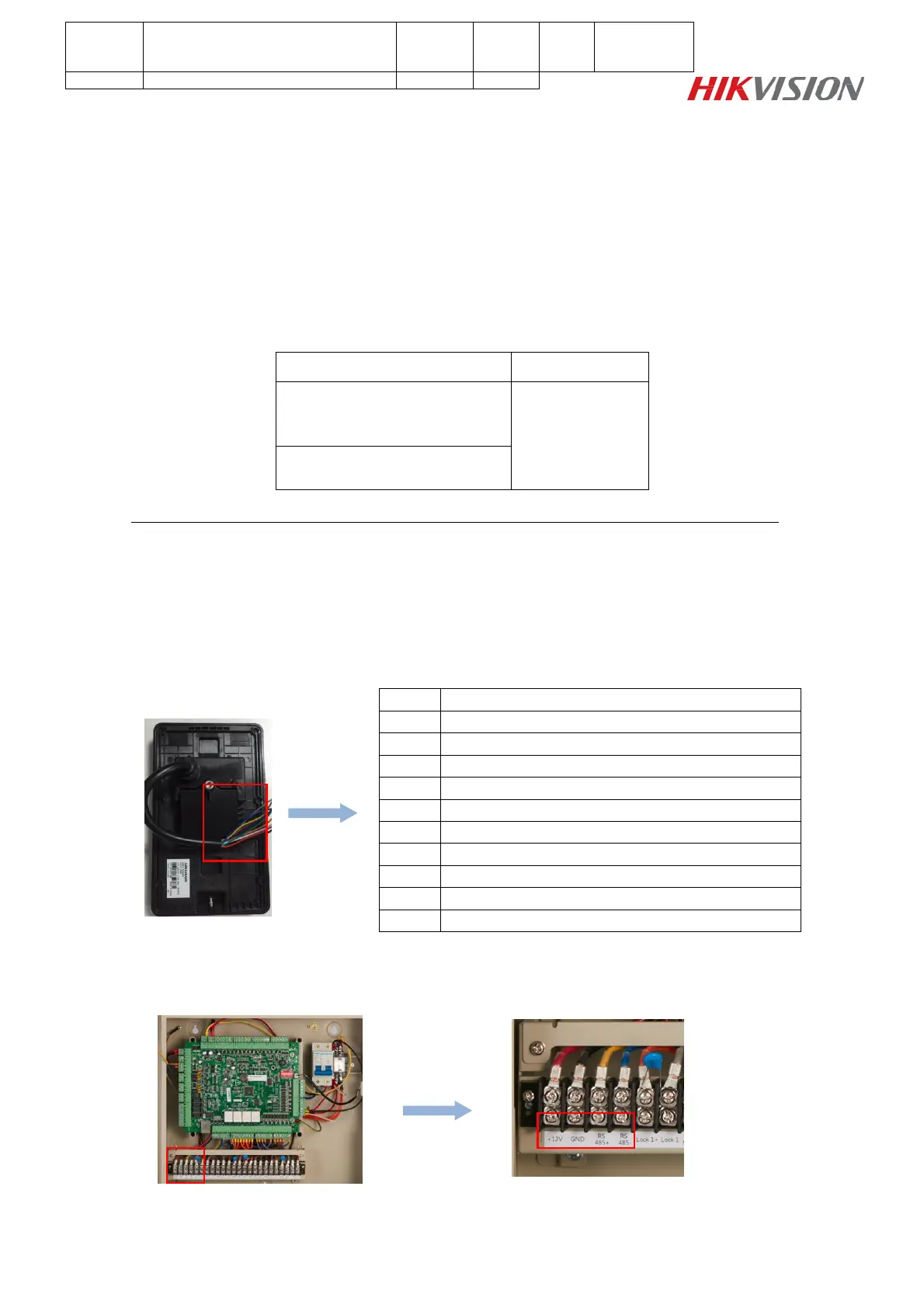

DS-K1100 Series Card Readers Connect to DS-K2600
Series Access Controllers by RS-485
Preparation
Connect card reader to access controller is mainly applied to swiping card to open the door for entrring or
exiting. The models of card reader and access controller in this guide are as below:
Card Reader
Access Controller
DS-K1101M/MK, DS-K1102M/MK,
DS-K1103M/MK, DS-K1104M/MK,
DS-K1107M/MK, DS-K1108M/MK
DS-K2601,
DS-K2602,
DS-K2604
DS-K1102E/EK, DS-K1107E/EK,
DS-K1108E/EK
Notice
1. Please cut off power supply before wiring;
2. DS-K1100 Series Card Readers support private RS485 protocol; the details about RS-485 about of
card reader are as below:
Color
Description
Red
Power (DC +12V)
Black
GND
Yellow
RS-485+
Blue
RS-485-
Green
W0 (available for Wiegand Protocol)
White
W1 (available for Wiegand Protocol)
Purple
Beep Control (available for Wiegand Protocol)
Brown
Blue/Green LED Control (available for Wiegand Protocol)
Orange
Red LED Control (available for Wiegand Protocol)
Gray
Tamper (available for Wiegand Protocol)
3. Correspondingly, there are RS485 interfaces in DS-K2600 series access controllers; you can find RS-
485 interface at the same position in DS-K2601/02/04 access controllers, as pictures show:

HIKVISION DS-K1104MK Specifications

General

Quantity per pack	1 pc(s)
Internal	No
Product color	Black, Silver
Built-in processor	Yes
Compatible memory cards	-
RS-485 ports	1
Type	Basic access control reader
Certification	FCC, CE
LED indicators	Status
RFID frequency	13.56 MHz
Authentication type	Access chip/card, Password
Supported protocols	Mifare
Keypad number of keys	12
RFID reading distance	50 mm
International Protection (IP) code	IP65
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption	0.5 mA

Weight and Dimensions

Depth	23 mm
Width	76 mm
Height	118 mm
Weight	520 g
