HIKVISION DS-K1104MK Manual

Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by RS-485
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
2 of 4

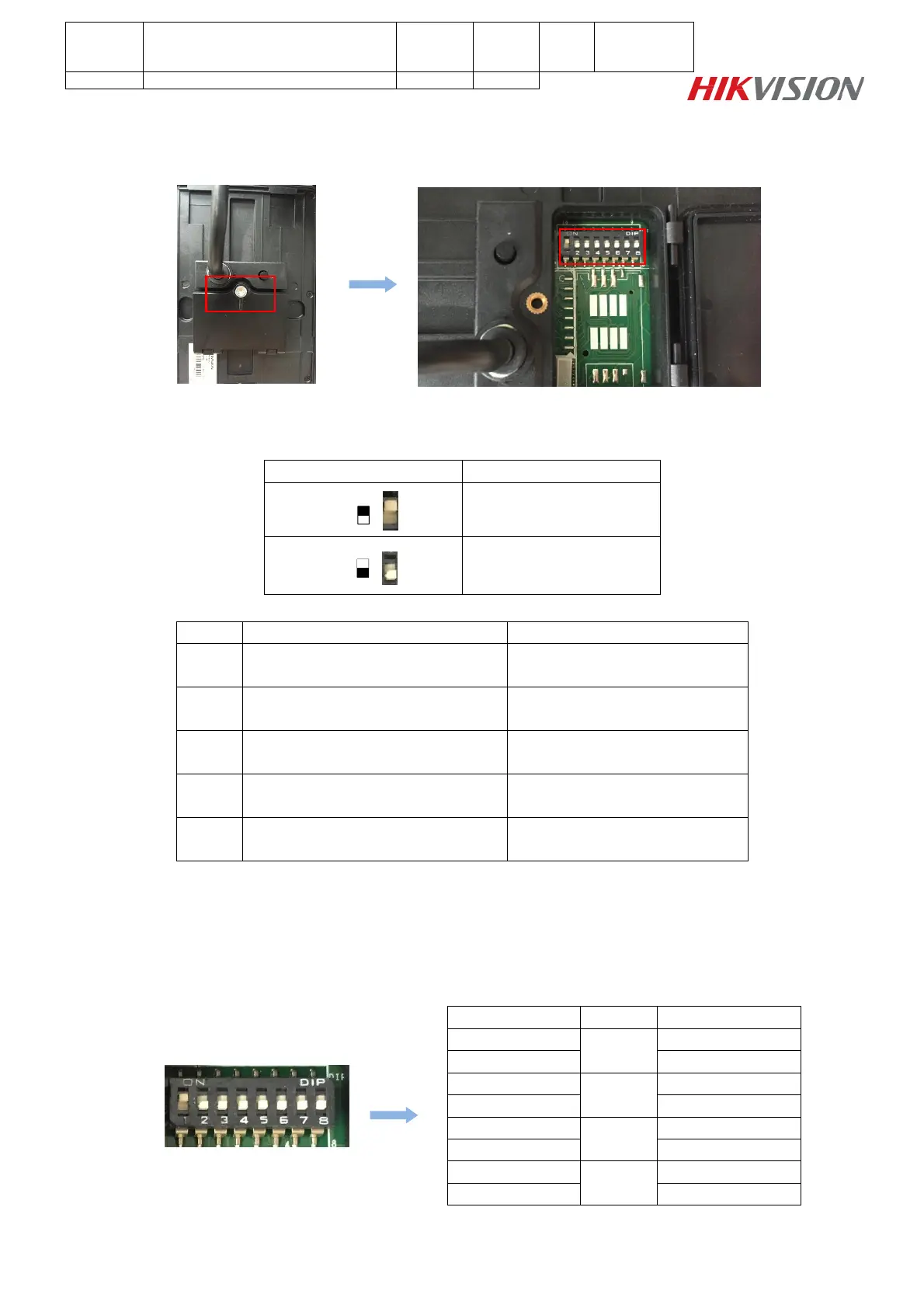

4. Please check the rear panel of card reader and unscrew it, you could find DIP switch module;
The No. of DIP switch from left to right is 1~8:
Description of DIP Switch:
Icon
Description
Represent 1 in binary mode
Represent 0 in binary mode
No.
Description
DIP Switch Status
1~4
Address of RS485
1: 1
0: 0
5
Read card No. or file in card(Reserved)
1: read file in card
0: read card No.
6
Wiegand protocol or RS-485 protocol
1: Wiegand protocol
0: RS-485 protocol.
7
Wiegand Protocol
(available when No. 6 is 1)
1: Wiegand protocol of 26-bit;
0: Wiegand protocol of 34-bit.
8
Matched Resistance(Reserved)
(available for RS-485 protocol)
1: Enable;
0: Disable.
Step 1: DIP Switch
Please set the DIP switch firstly before connecting the card reader, more details about the binary value of
the card reader by setting DIP Switch to correspond with the door, please check the table below:
DIP Switch Status
Door
Reader
1000 0000
Door 1
Entrance Reader 1
0100 0000
Eixt Reader 2
1100 0000
Door 2
Entrance Reader 3
0010 0000
Eixt Reader 4
1010 0000
Door 3
Entrance Reader 5
0110 0000
Eixt Reader 6
1110 0000
Door 4
Entrance Reader 7
0001 0000
Eixt Reader 8

HIKVISION DS-K1104MK Specifications

General

Quantity per pack	1 pc(s)
Internal	No
Product color	Black, Silver
Built-in processor	Yes
Compatible memory cards	-
RS-485 ports	1
Type	Basic access control reader
Certification	FCC, CE
LED indicators	Status
RFID frequency	13.56 MHz
Authentication type	Access chip/card, Password
Supported protocols	Mifare
Keypad number of keys	12
RFID reading distance	50 mm
International Protection (IP) code	IP65
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption	0.5 mA

Weight and Dimensions

Depth	23 mm
Width	76 mm
Height	118 mm
Weight	520 g
