HIKVISION DS-K1104MK Manual

Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by RS-485
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
3 of 4
For example, if you want to swipe card to open the first door, no matter your access controller is DS-
K2601, DS-K2602 or DS-K2604, the binary value of the entrance card reader should be 1000 0000 and
the binary value of the exit card reader should be 0100 0000.

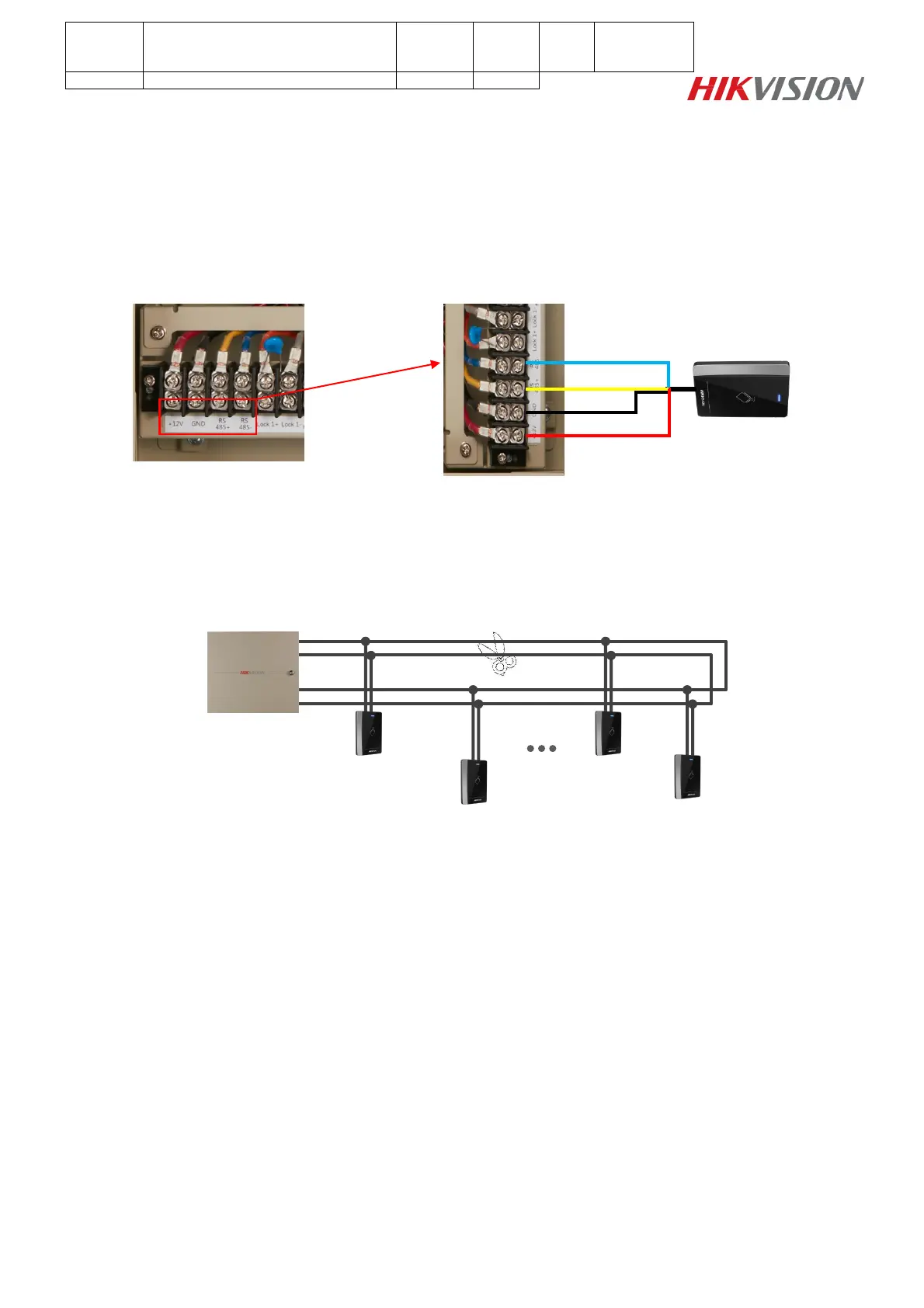

Step 2: RS-485 Wiring
Please connect card reader to access controller as following picture:
Note
1. Actually you can find RS485 A/B/C/D interfaces in access controller; we extend RS485 A interface
to the wiring distribution for easier cable connection and we use RS485B interface for backup, the
cable connection as following picture:
2. About wiring materials, we suggest customer choose RVVP cable.
RS485-
RS485+
GND
+12V
RS485 A+
RS485 A-
RS485 B+
RS485 B-

HIKVISION DS-K1104MK Specifications

General

Quantity per pack	1 pc(s)
Internal	No
Product color	Black, Silver
Built-in processor	Yes
Compatible memory cards	-
RS-485 ports	1
Type	Basic access control reader
Certification	FCC, CE
LED indicators	Status
RFID frequency	13.56 MHz
Authentication type	Access chip/card, Password
Supported protocols	Mifare
Keypad number of keys	12
RFID reading distance	50 mm
International Protection (IP) code	IP65
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption	0.5 mA

Weight and Dimensions

Depth	23 mm
Width	76 mm
Height	118 mm
Weight	520 g
