HIKVISION DS-K1104MK Connecting Guide

Title:
DS-K1100 Series Card Readers Connect
to DS-K1T105&DS-K1T200 Series
Access Control Terminal
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
3 of 4

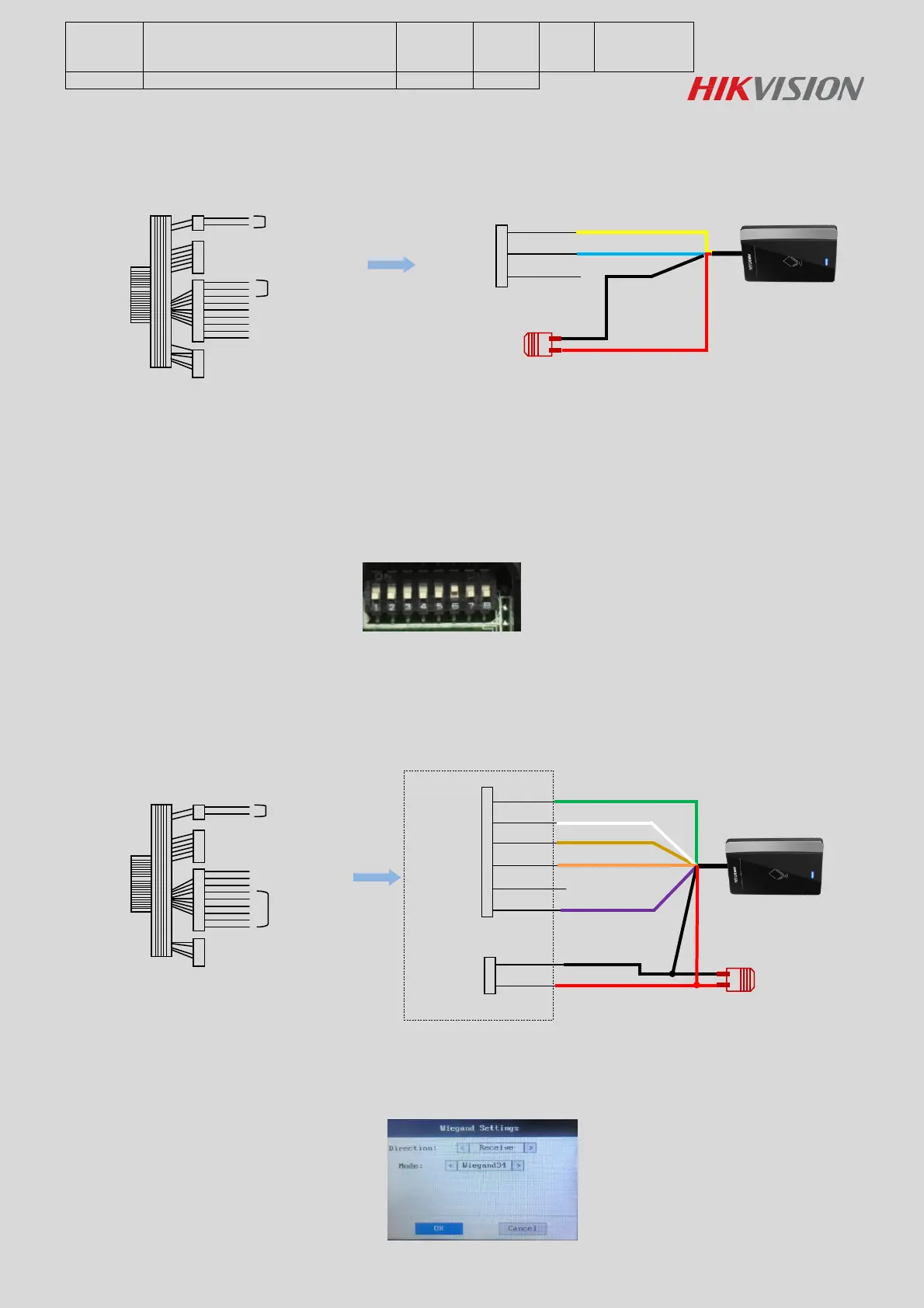

Step 2: Wiring
We recommend that customers use external power supply to card reader.
Please connect card reader as following picture:
Wiegand Wiring
Step 1: DIP Switch
When terminal adopts the wiegand interafce connecting card reader, terminal only supports Wiegand34
protocol. Please set the DIP switch firstly before connecting the external card reader, the binary value of
the card reader is 0000 0100, please set as the following picture;
Step 2: Wiring
We recommend that customers use external power supply to card reader.
Please know that the external power supply and the access control terminal should use the same GND
cable; Please connect card reader as following picture:
Step 3: Local Setting
Enter local configuration interface by inputting password, Comm  Wiegand, setting like below picture
shows:
Power Input
RS485
RS485
Interface
RS485+
RS485-
GND
RS485-/Blue
RS485+/Yellow
GND/Black
12V/Red
External Power
Supply
Power Input
Wiegand
Wiegand
Interface
WG_ERR
TAMPER
BUZZER
GND/Black
+12V/Red
Power Supply
W0
W1
WG_OK
W1/White
W0/Green
ERR/Orange
OK/Brown
BUZZER/Purple
Power
Input
GND
12V

HIKVISION DS-K1104MK Specifications

General

Quantity per pack	1 pc(s)
Internal	No
Product color	Black, Silver
Built-in processor	Yes
Compatible memory cards	-
RS-485 ports	1
Type	Basic access control reader
Certification	FCC, CE
LED indicators	Status
RFID frequency	13.56 MHz
Authentication type	Access chip/card, Password
Supported protocols	Mifare
Keypad number of keys	12
RFID reading distance	50 mm
International Protection (IP) code	IP65
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption	0.5 mA

Weight and Dimensions

Depth	23 mm
Width	76 mm
Height	118 mm
Weight	520 g
