DS-K1107 Series Card Reader
14
establish the communication between them.
Steps for RS-485 communication mode:
1. Set the DIP switch of No. 6 as 0.
2. Set the DIP switch of No. 1 ~ 4 for RS-485 address and
reading card mode. For details, please refer to 2.1
Introduction for DIP Switch.
3. Wire the cable between controller and card reader as
shown below.

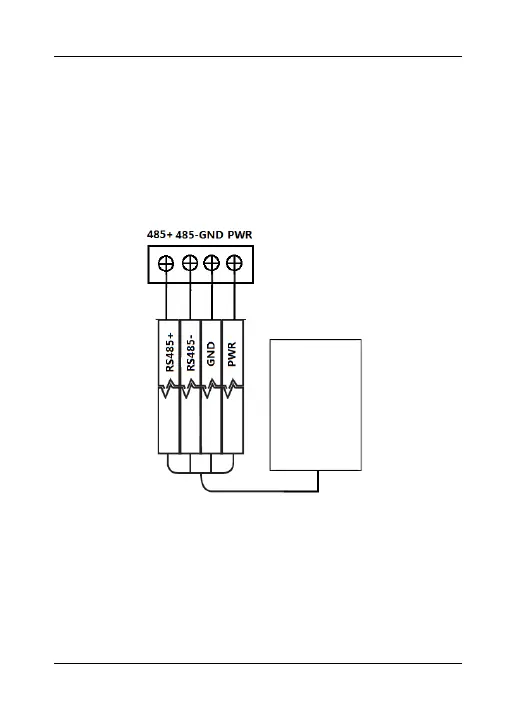

Figure 2-3 Wiring for RS-485 Communication Mode
Steps for Wiegand communication mode:
1. Set the DIP switch of No. 6 as 1.
2. Set the DIP switch of No. 7 for reading card mode and
Wiegand protocol. For details, please refer to 2.1
Introduction for DIP Switch.
3. Wiring the cable between controller and card reader as
