HIKVISION DS-K1107 Series User Manual

DS-K1107 Series Card Reader
16
Installation for DS-K1101/ 02/ 03/ 04 series card reader
Steps:

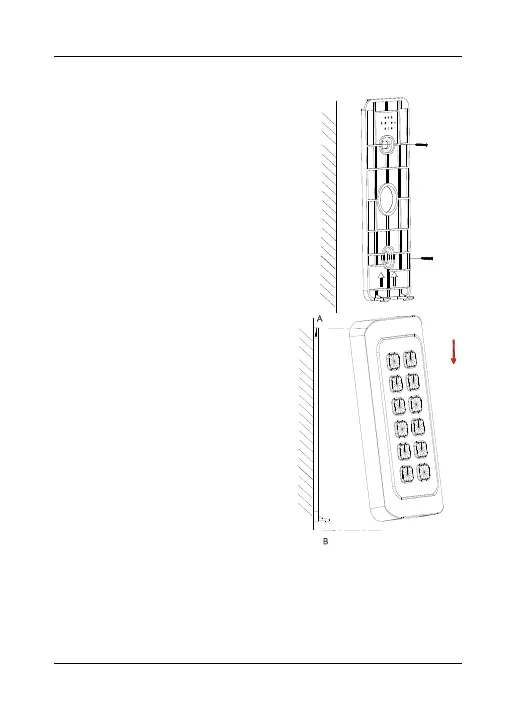

1. Fix the plate on the wall or
other places by using two
screws (PA4×25-SUS). Make
sure the arrows on the plate
are upwards.
2. Check whether the plate is
fixed and in the right direction.
3. Slide the card reader from the
direction A to B along the
plate side until the bottom
matches the joint. Make sure
the card reader is tightly on
the wall or other places.
4. Drag and move the card
reader to make sure it is fixed.
Chapter 3 Sound Prompt and Indicator
After the card reader is powered on, LED status indicator will turn
green and blink for 1 time. Then it will turn red and blink for 3
