HIKVISION DS-K1108AM User Manual

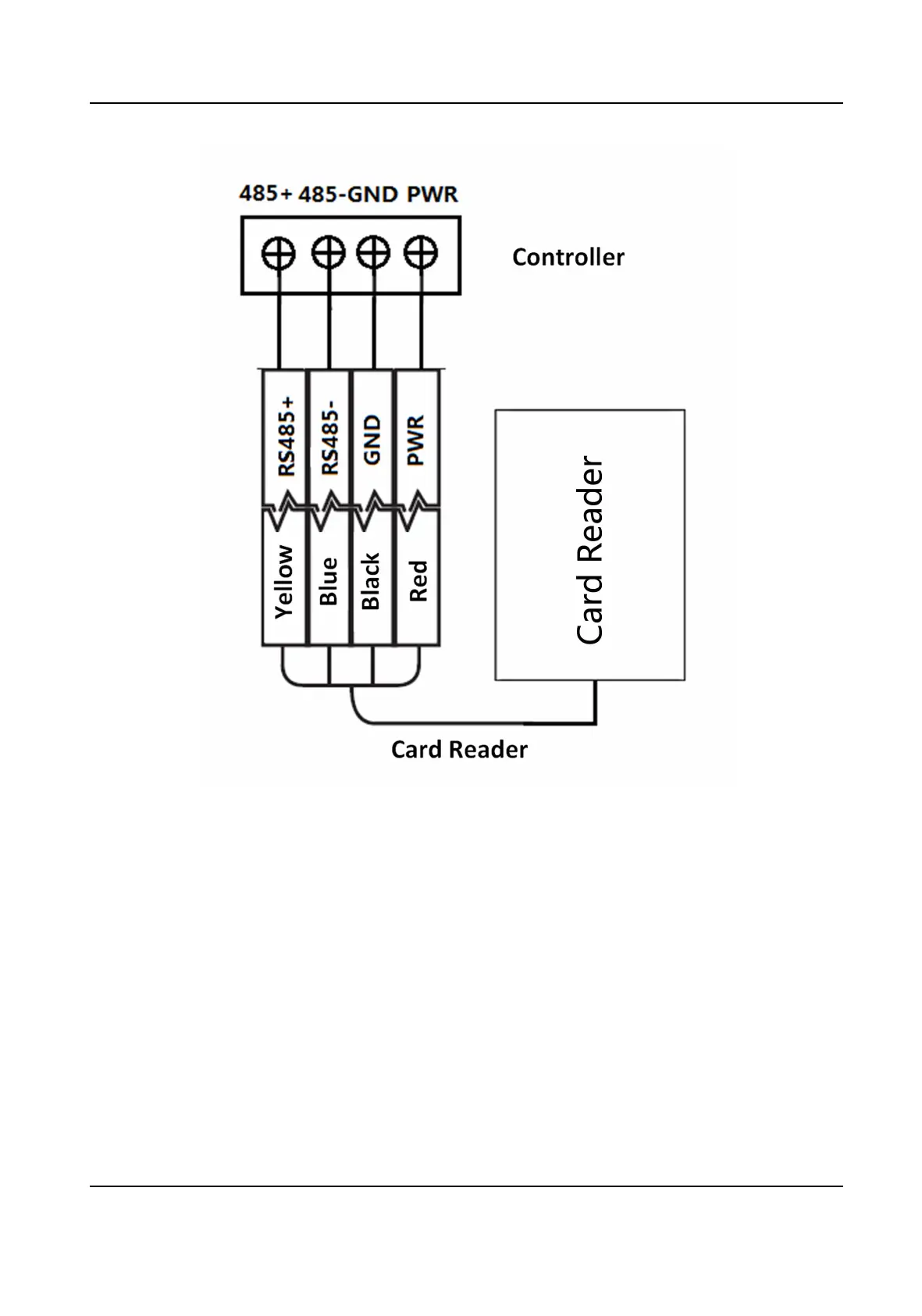

Figure 3-1 Wiring for RS-485 Communicaon Mode
3.2.3 Set Wiegand
Communicaon Mode
Steps
1. Set the DIP switch of No. 6 as 1.
2. Set the DIP switch of No. 5 and 7 for reading card mode and Wiegand protocol. For details,
refers to DIP Switch
Descripon .
3. Wiring the cable between controller and card reader as shown below.
DS-K1108A Series Card Reader User Manual
6

HIKVISION DS-K1108AM Specifications

General

Brand	HIKVISION
Model	DS-K1108AM
Category	Card Reader
Language	English
