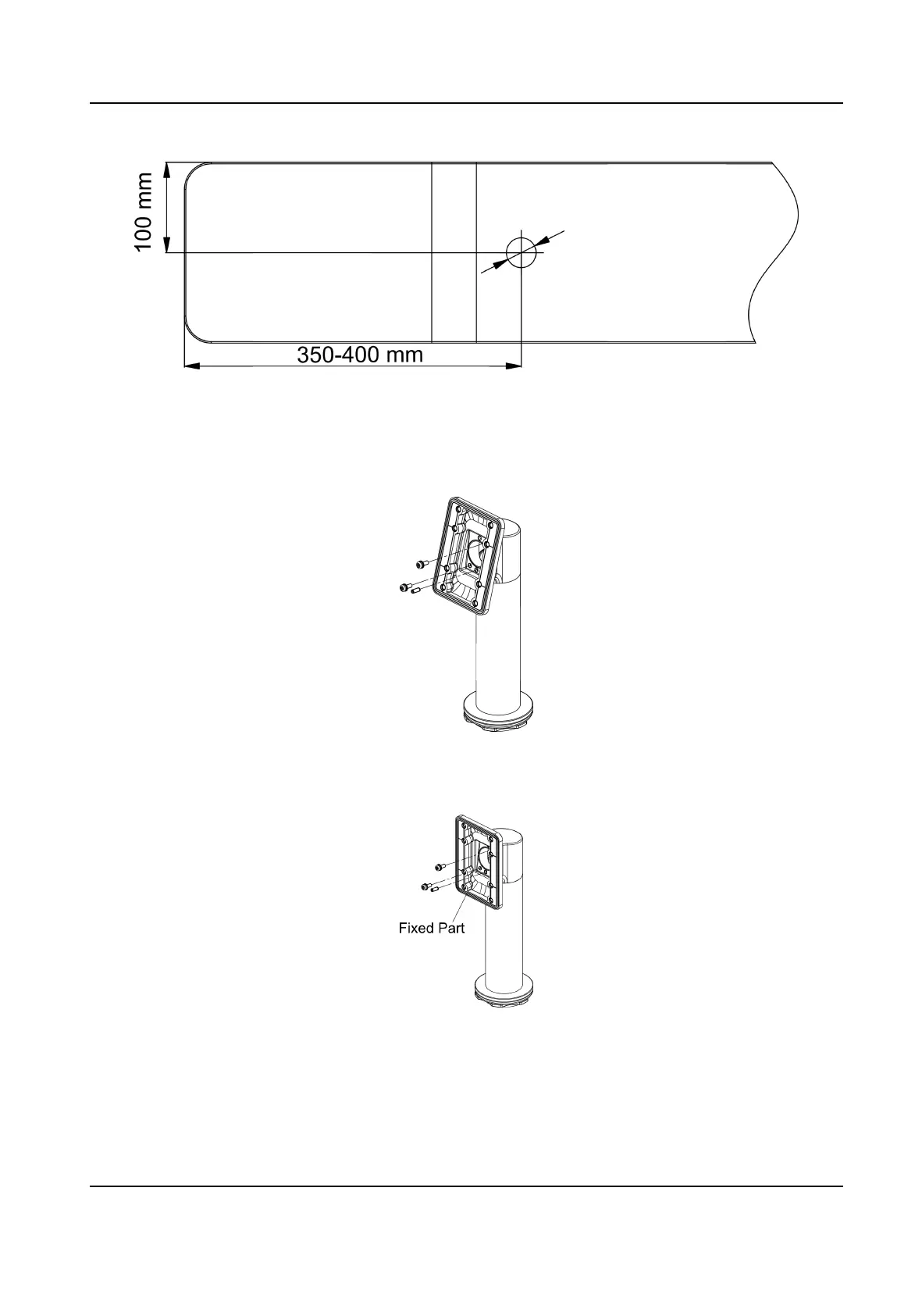

Figure 3-10 Drill Holes on Turnsle
2.
If the installaon angle needs to be 180° perpendicular to the body of the turnsle, the
following operaons are required.
1) Take o the 3 screws shown in the following gure.
Figure 3-11 Take o Screws
2) Rotate the xed part by 180°, and install the 3 screws back.
Figure 3-12 Rotate Fixed Part
