Scenario: Installed in Entrance/Exit with Fire Linkage
Note
●
The Uninterpretable Power Supply (UPS) is required.
●
The re system (NC and COM, normally closed when powering o) is connected with the lock
and the power supply in series. When an re alarm is triggered, the door remains open. In
normal
mes, NC and COM are open.

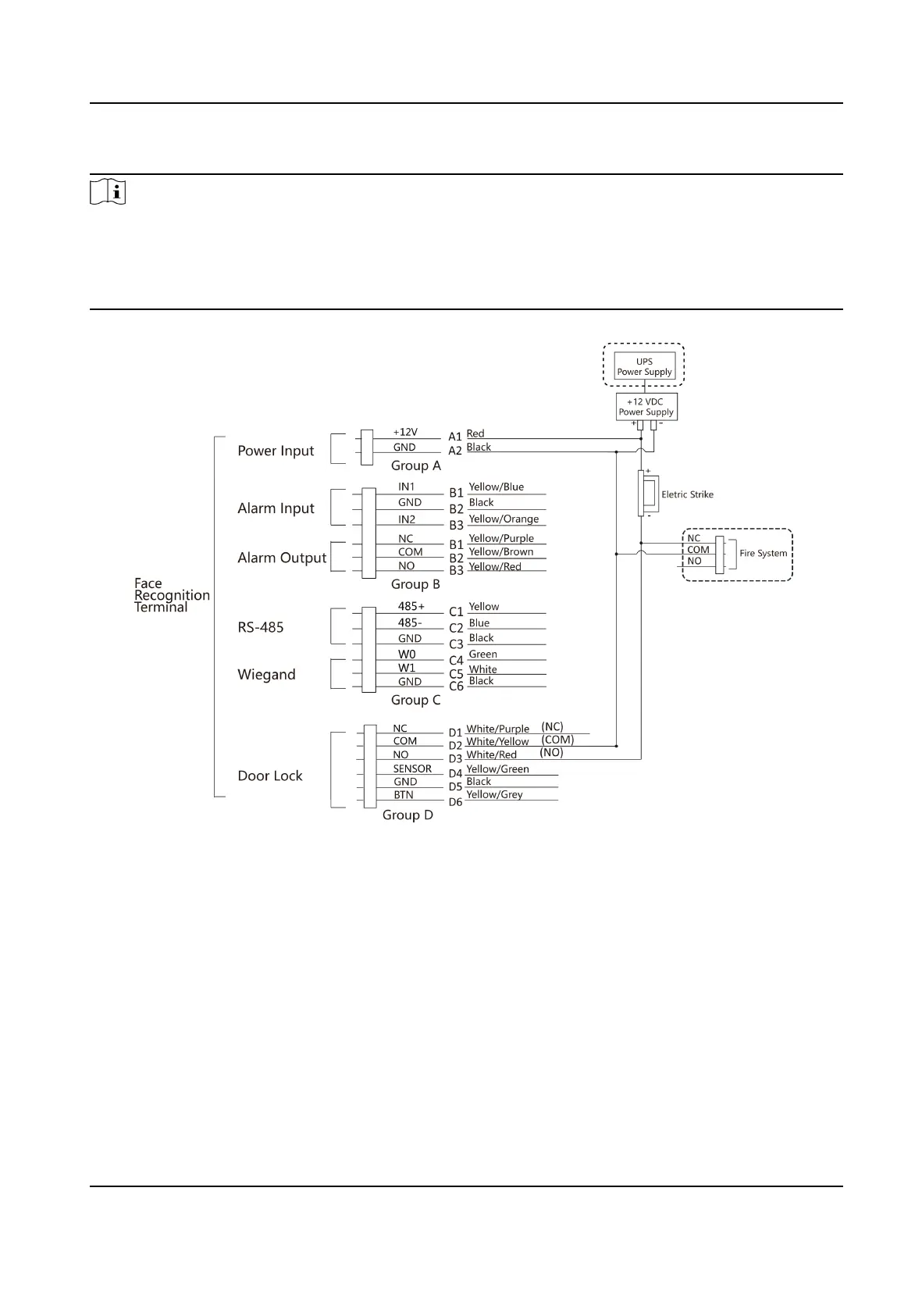

Figure 4-8 Device Wiring
DS-K1T673 Series Face Recognion Terminal User Manual
26
