Chapter 2 Installation
Before You Start:
 Make sure that the device in the package is in good condition and all the assembly parts are
included.
 Make sure that the wall is strong enough to withstand three times the weight of the device.

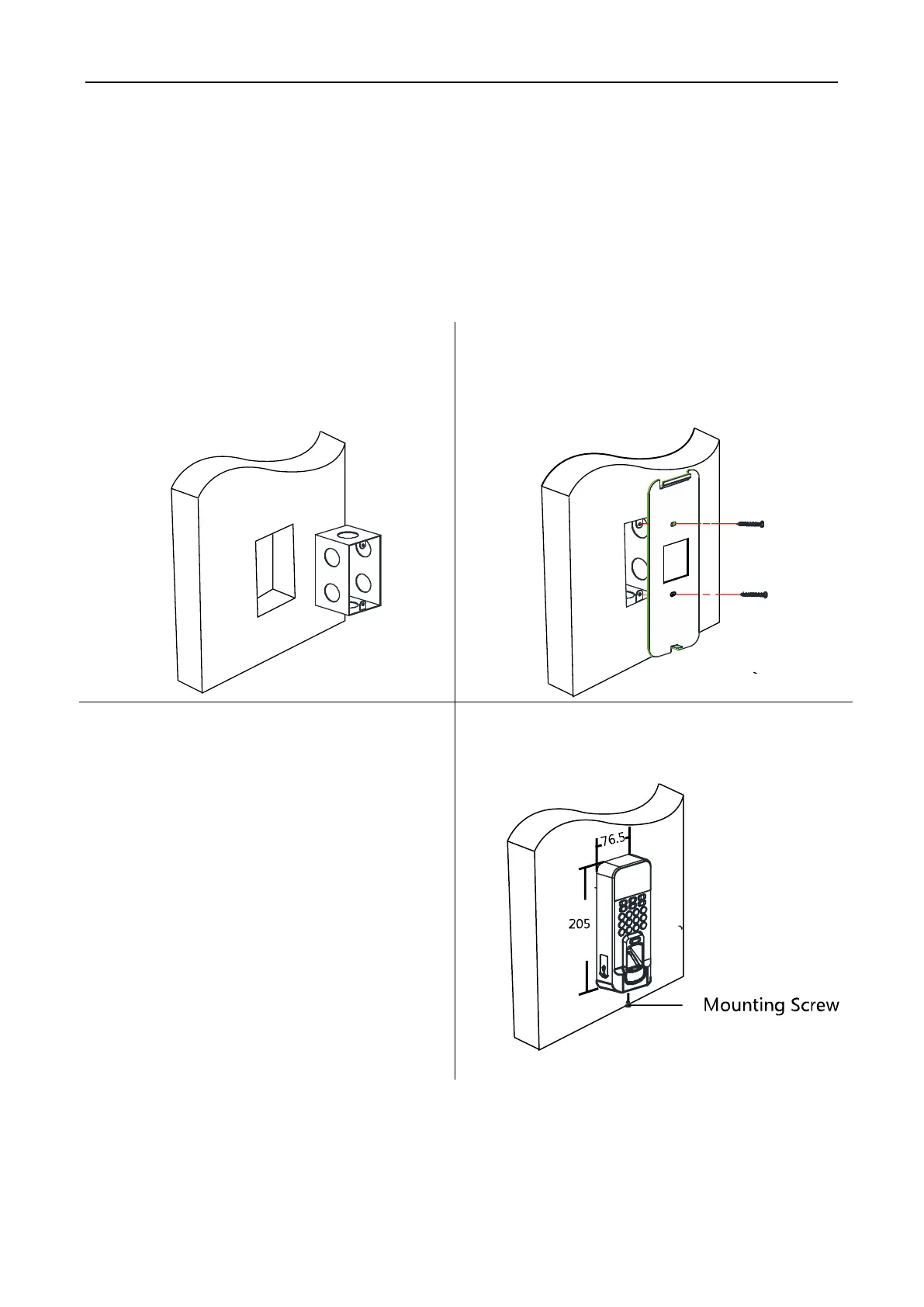

Steps:
1. Install 120 gang box into the wall.
2. Route the cables through the cable hole of the
mounting plate.
3. Secure the device mounting plate on the gang
box with two screws (supplied).
4. Connect the corresponding cables.
5. Align the terminal with mounting plate.
Push the terminal in the mounting plate
from bottom up. Fasten the terminal with
the buckles on the plate.
4. Tighten the screws to fix the terminal on the
mounting plate and complete the installation.

HIKVISION DS-K1T804EF Specifications

General

Type	Intelligent access control reader
Log capacity	100000
Product color	Black
Cards capacity	3000 cards
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric
Keypad number of keys	18
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Contactless working distance	50 mm
Front camera	No
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
PC connection	RS-485/USB 2.0/Wi-Fi
Display type	TFT-LCD
Display diagonal	2.4 \
Maximum resolution	320 x 240 pixels
DC current (max)	2 A
DC voltage range	12 - 12 V

Weight and Dimensions

Depth	37 mm
Width	76.5 mm
Height	205 mm
