HIKVISION DS-K3G200X Series - Optional Board Terminals

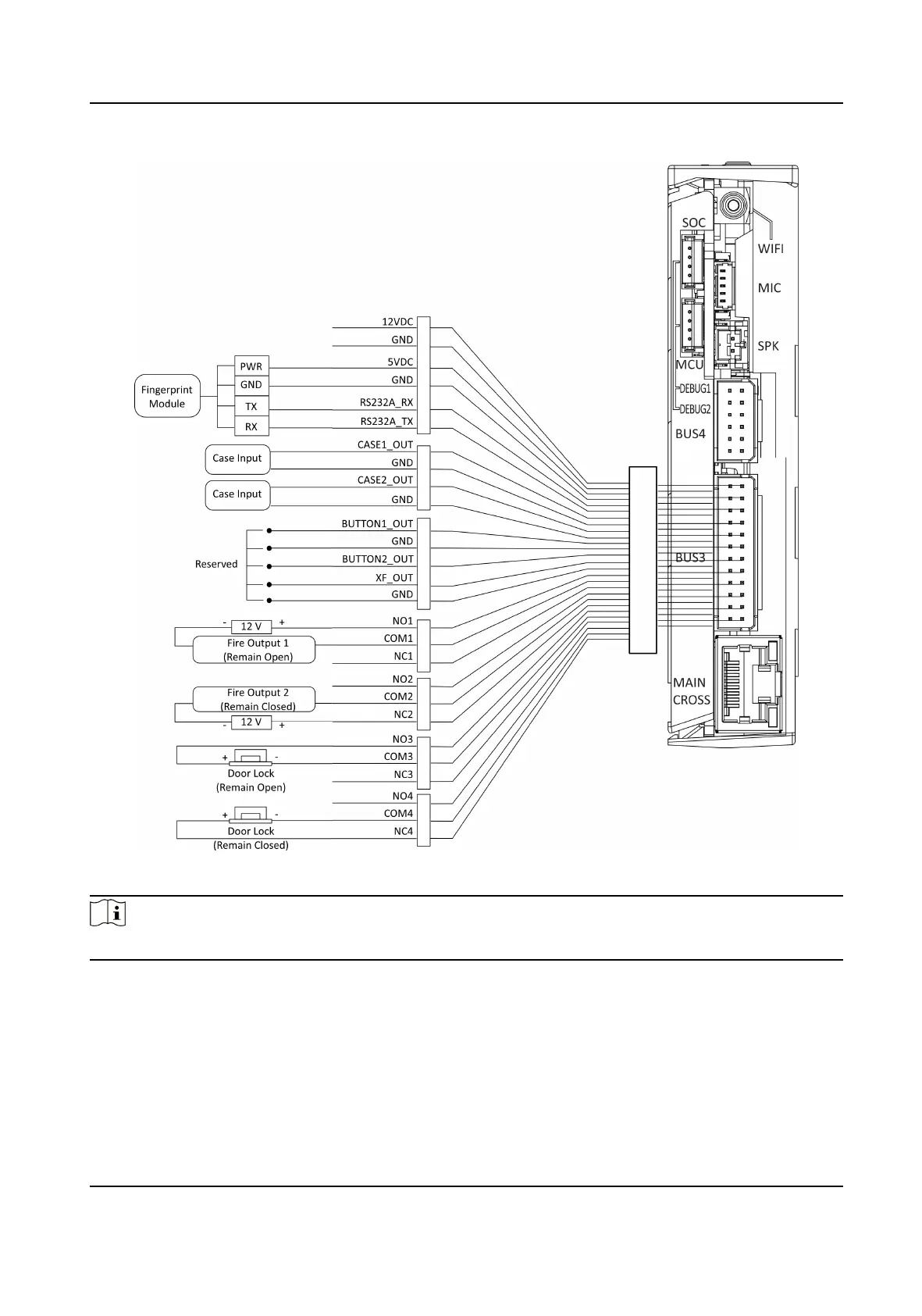

Figure 4-3 Wring Diagram of BUS3 Interface
Note
RS-232A corresponds to UART 1 on web.
4.4.3 Main Oponal Board Terminal Descripon (Oponal)
The main oponal board contains the sub-1G antenna interface, loudspeaker interface, debugging
port, Wiegand/exit
buon interface, 5 VDC output and communicaon interface.
DS-K3G200(L)X Series Tripod Turnsle
13
