HIKVISION DS-K3G4402 Series User Manual

Tri-pod Turnstile • User Manual
14

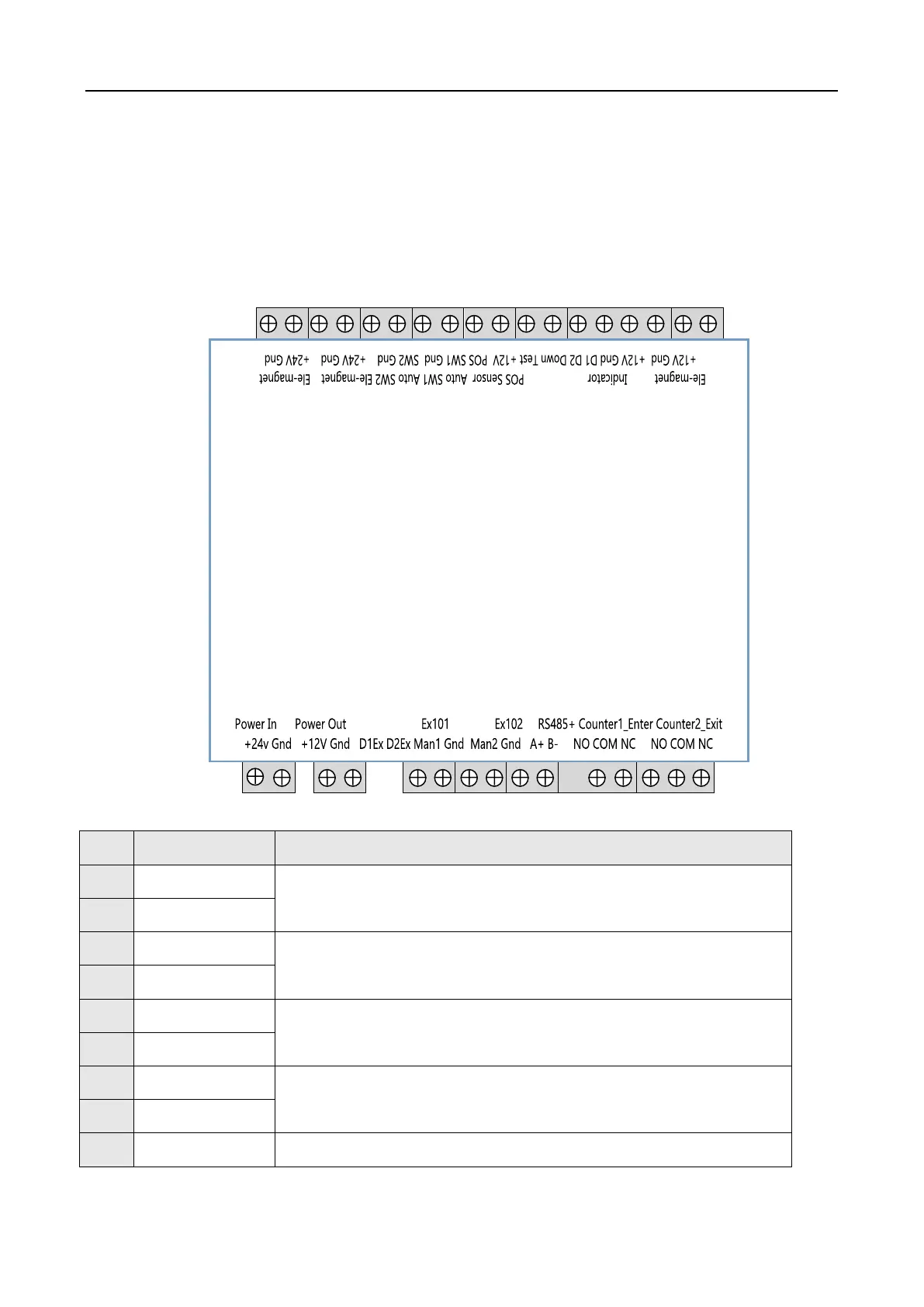

Chapter 3 Board and wiring diagram
3.1 Board instruction
No
Port Sign
Instructions
1
+24V
24V input power supply to PCB board
2
GND
3
+12V
12V power Output to Light bar, counter and so on.
4
GND
5
D1Ex
NO USE
6
D2Ex
7
Man1
Entry button for manual opening gate input
8
GND
9
Man2
Exit button for manual opening gate input
·
