HIKVISION DS-KD-DIS User Manual

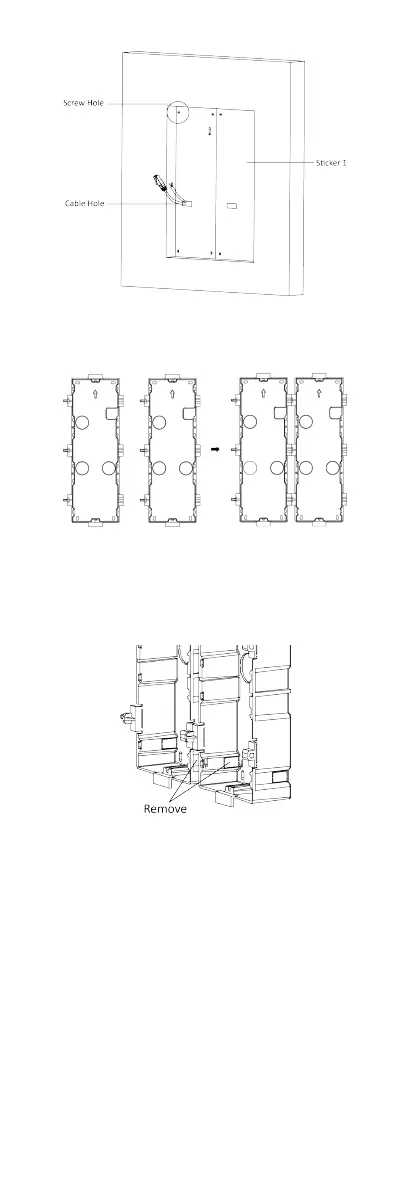

Figure 4-41 Cave the Installaon Hole
2. Connect two gang boxes as below.
Figure 4-42 Connect Two Gang Boxes
3. Select a cable entry and remove the plasc sheet.
4. Remove the
plasc sheets on the side of the gang boxes
(shown as 1 and 2) below:
Figure 4-43 Remove the Plasc Sheets
5.
Mark the gang box screw holes on the wall.
1) Route the cables through the gang box hole.
2) Insert the gang box into the installaon hole.
3) Mark the gang box screw holes' posion with a marker, and
take out the gang box.
31
