1) Connect Cable 1 and one end of Cable 2 to the
corresponding interfaces of the Main Unit, then place the
Main Unit into the upper grid of the le gang box.
2) Connect the other end of Cable 2 to the input interface of
Sub Module 1. Connect one end of Cable 3 to the output
interface of Sub Module 1 and insert it into the middle grid
of the
le gang box.
3) Finish the wiring and
inserng according to the cable
number and the
posion shown as below.

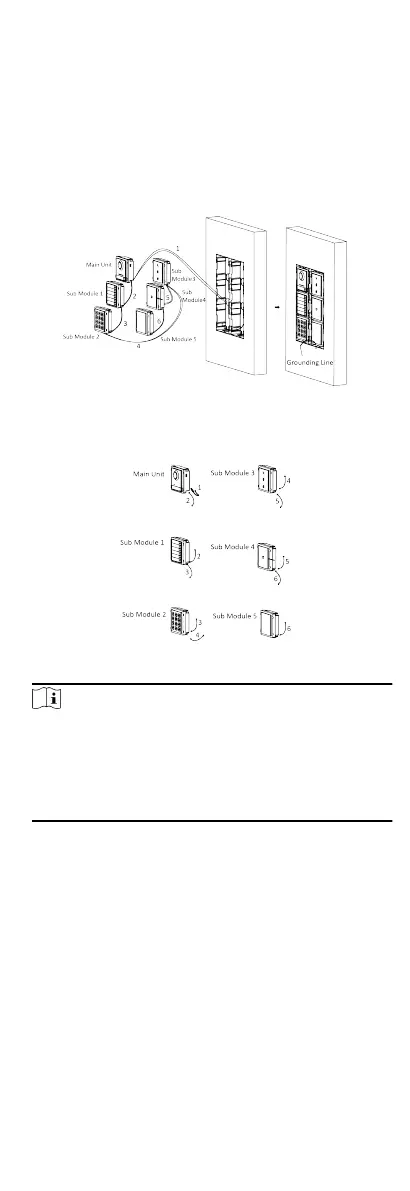

Figure 4-47 Install Mounng Frame
The cables connect to each module shown as below.
Figure 4-48 Cables Connecon
Note
●
Cable 2,3,5 and 6 are the module-connecng lines (190 mm)
in the package.
●
Cable 4 is the module-connecng line (400 mm) in the
package.
●
Main unit must be put in the top grid.
10. Pull the grounding line out and xed its two end to the screw
on the cover.
