HIKVISION DS-KD8002-VM Quick Start Guide

Video Intercom Door Station·Quick Start Guide
31

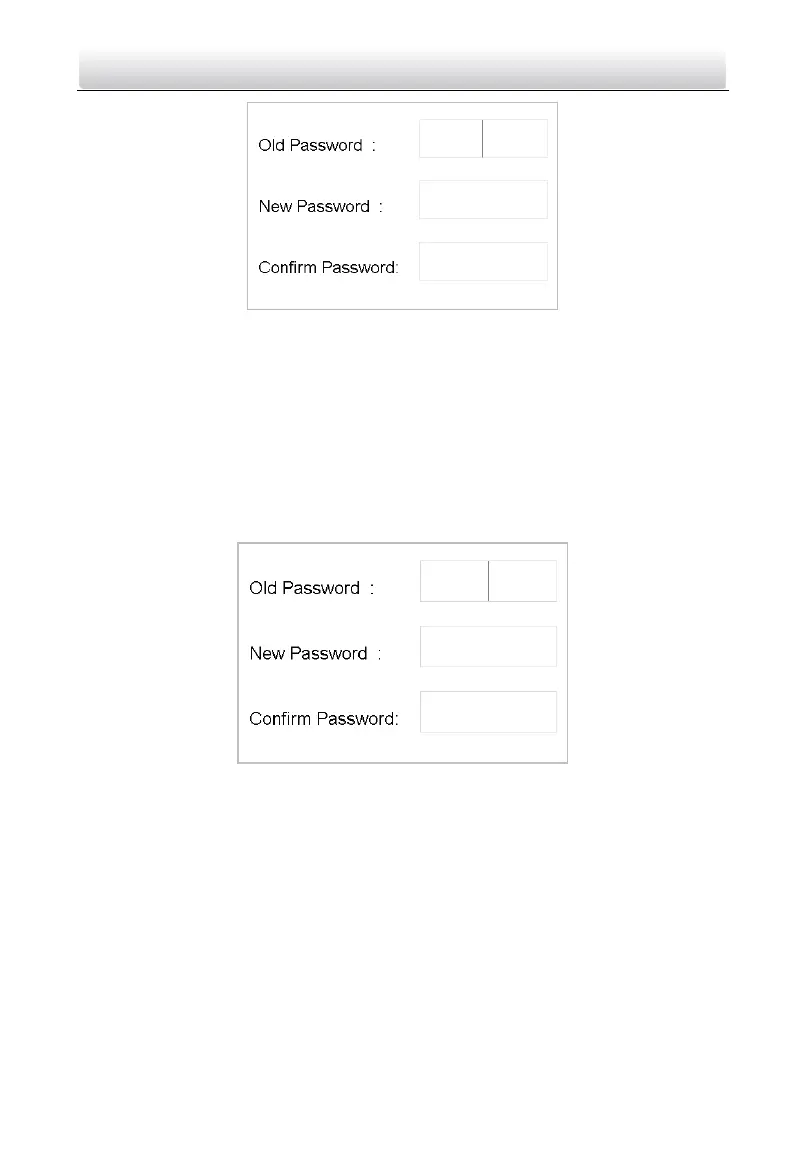

Figure 4-9 Configuration Password Changing Page
2. Enter the old password, and the new password, and confirm the new one.
1) Move the cursor to parameters to be configured.
2) Press the # key to enter or exit the editing mode.
3. Press the * key to exit the password settings page.
Change Card Activation Password
Steps:
1. On the password settings page, press the numeric key 2 to enter the card activation
password changing page.
Figure 4-10 Card Activation Password Changing Page
2. Enter the old password, and the new password, and confirm the new one.
3) Move the cursor to parameters to be configured.
4) Press the # key to enter or exit the editing mode.
3. Press the * key to exit the password settings page.
4.5 Call Settings
4.5.1 Call Resident
You can call residents via the door station no matter the door station is in the network
intercom system or the analog intercom system.

HIKVISION DS-KD8002-VM Specifications

General

Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	14 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Operating system installed	Linux
Proper use	Outdoor
Product color	Aluminium, Black
Outdoor unit housing material	Aluminum
International Protection (IP) code	IP65
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Display aspect ratio	3:2
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Outdoor unit power type	AC/DC
Power consumption (typical)	15 W
Sensor type	CMOS
Maximum frame rate	30 fps
Maximum video resolution	1280 x 720 pixels

Weight and Dimensions

Depth	61 mm
Width	145 mm
Height	418 mm
Door station dimensions (WxDxH)	145 x 61 x 418 mm
