HIKVISION DS-KD8023-E6 - Gang Box of 30 Series Door Station; Flush Mounting with Gang Box

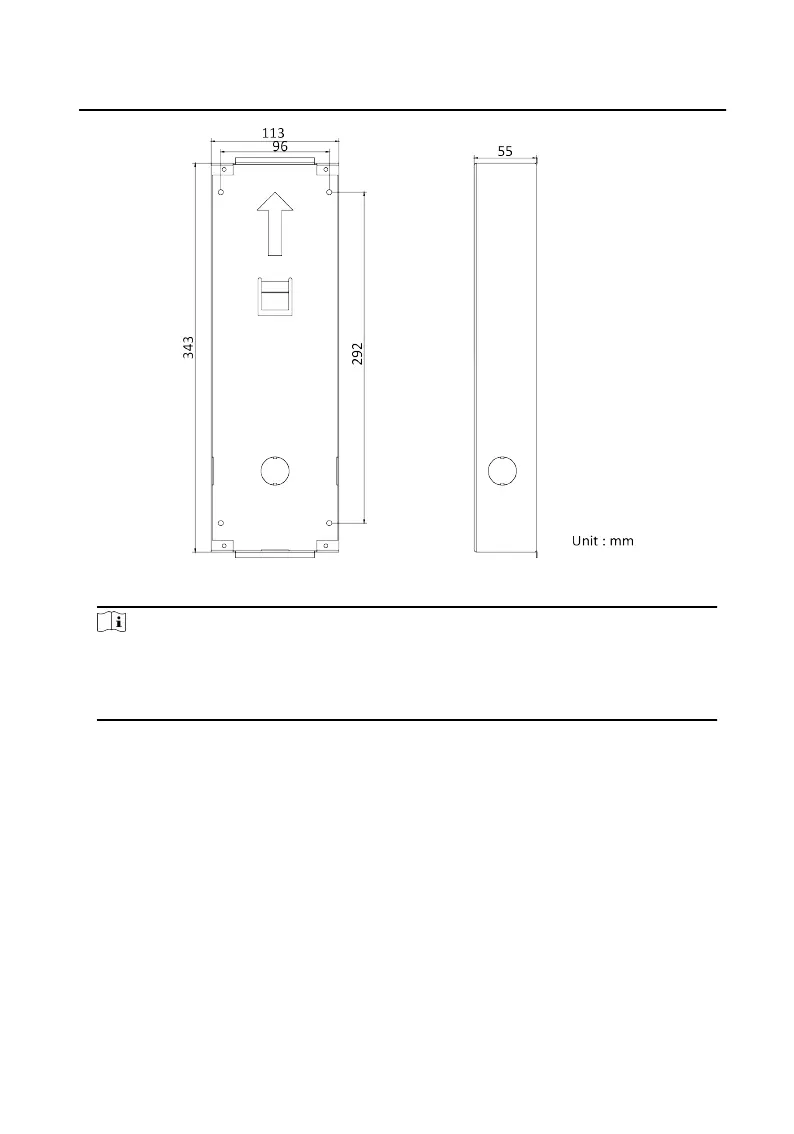

Figure 3-11 Gang Box
Note
•
The dimension of gang box is: 343 (W) × 113 (H) × 55 (D) mm.
•
The dimensions above are for reference only. The actual size can be slightly
dierent from the theorecal dimension.
3.3.2 Flush Mounng with Gang Box
Steps
1.
Drill a hole in the wall for
inserng the gang box. The size of the hole should be
larger than that of the gang box. The suggested size of the hole is 343.5 (W) ×
113.5 (H) × 55.5 (D) mm.
Video Intercom D Series Door
Staon User Manual
20
