3 Typical Application
PC Client
Center Master
Station
Network
Camera
Master Station
(Guarding Room)
Outer Door Station
Card Reader
Card Reader
Indoor
Extension1
Indoor
Extension2
Elevator Controller
LAN
1F
2F
22F
Resident 1Resident 2
Resident 1Resident 2
Resident 1Resident 2
A Building
Door Station
v
v
v
v
v
v
v
v

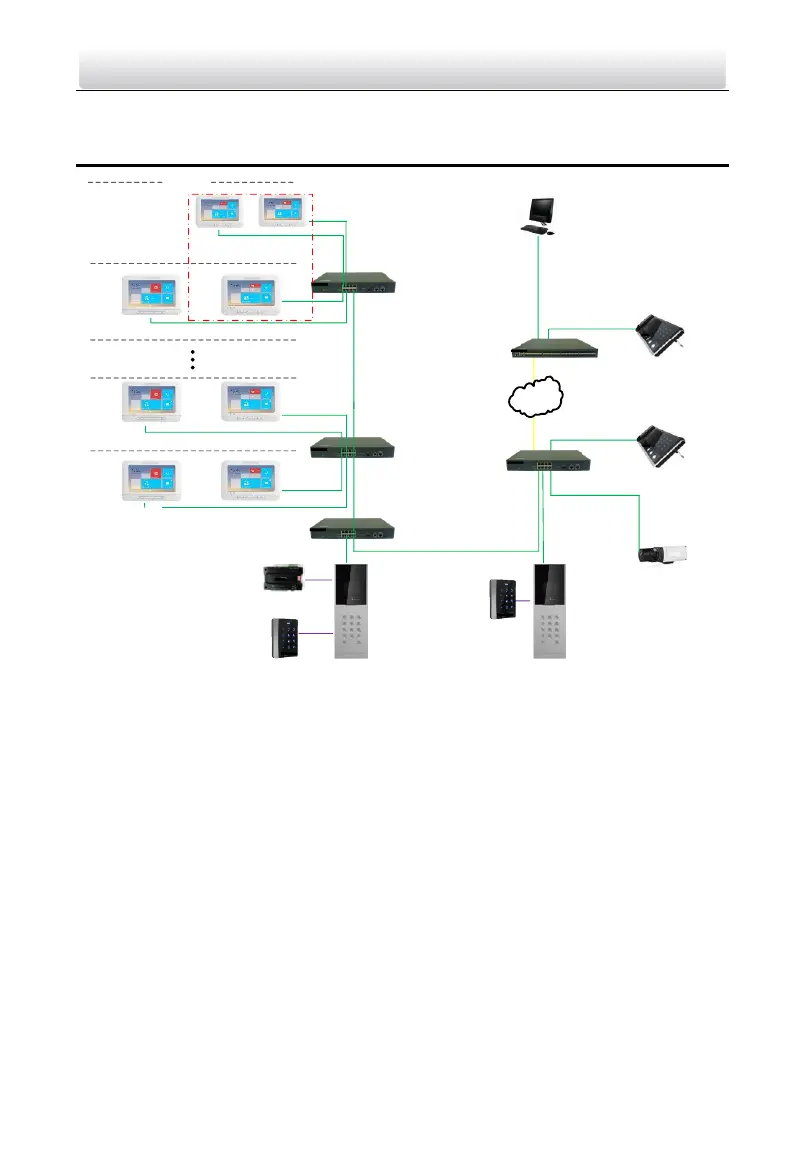

Figure 3-1 Typical Application of Door Station
