Video Intercom Door Station·User Manual
12

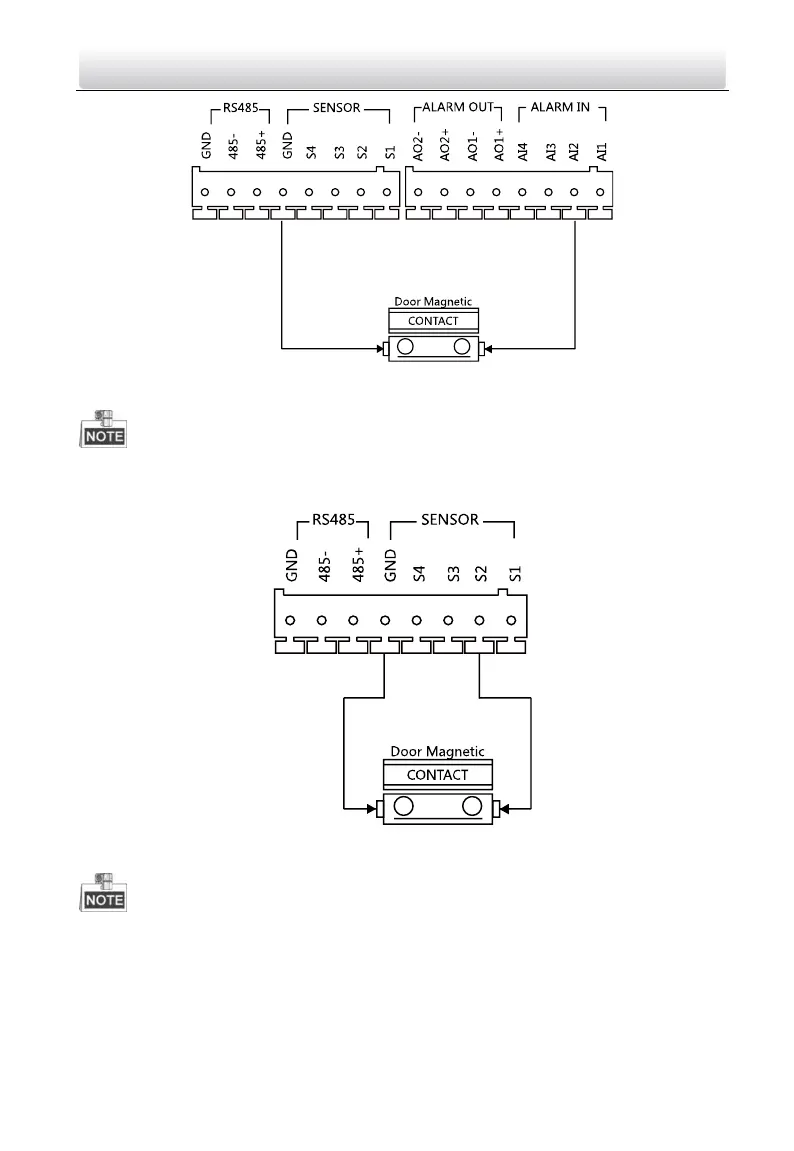

Figure 4-4 Door Magnetic Wiring for DS-KD8102-V/DS-KD8002-VM (1)
To connect the door magnetic, it is required to set the output of terminal AI2 to be door
magnetic with Batch Configuration Tool or iVMS-4200.
Figure 4-5 Door Magnetic Wiring for DS-KD8102-V/DS-KD8002-VM (2)
Terminal S2 is set as default for connecting door magnetic.
