HIKVISION DS-KD8102-V User Manual

Video Intercom Door Station·User Manual
49
General
Click the General button to enter device general parameters settings interface. You can
view and edit the device name and device ID.

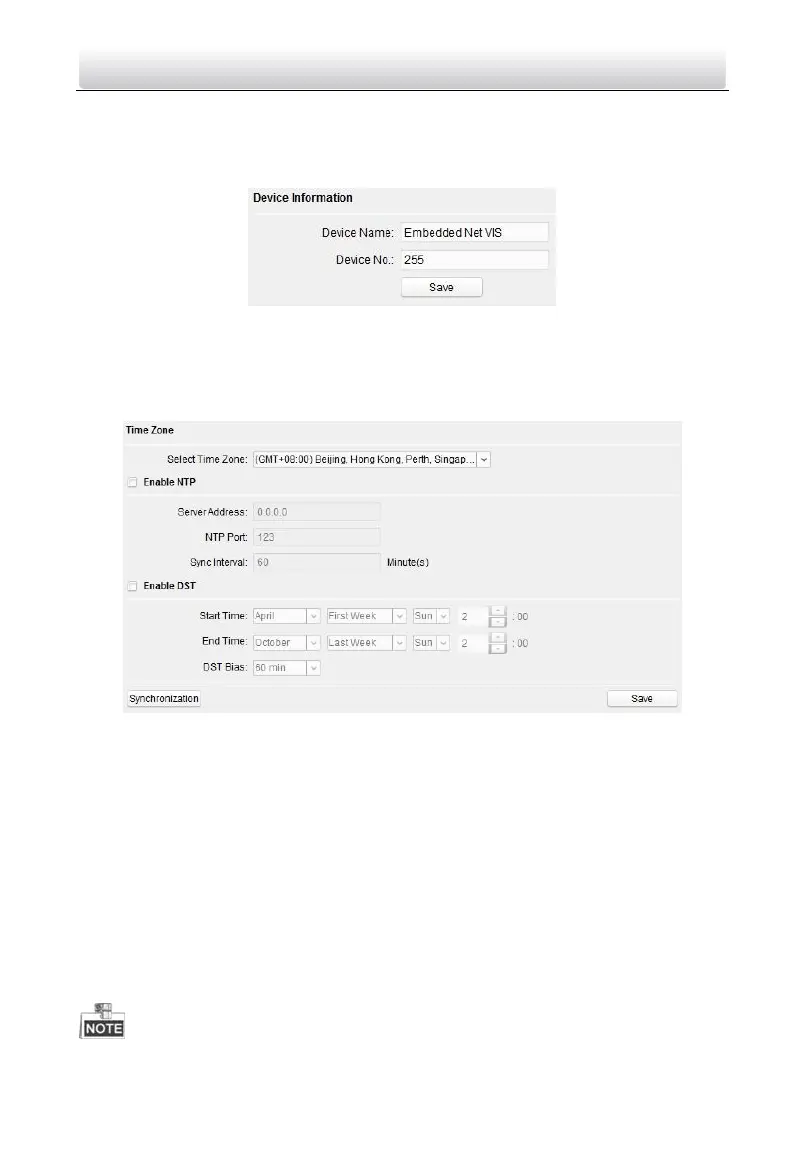

Figure 8-13 General
Time
Steps:
1. Click the Time button to enter the device time settings interface.
Figure 8-14 Time Settings
2. Select Time Zone or Enable NTP.
 Time Zone
1) Select a time zone from the drop-down list menu.
2) Click the Synchronization button.
 NTP
1) Check the checkbox of Enable NTP to enable NTP.
2) Enter the server address, NTP port, and synchronization interval.
 DST
1) Check the checkbox of Enable DST to enable DST.
2) Enter the start time and end time of DST, and set the DST bias.
3. Click the Save button to save and realize the time settings.

HIKVISION DS-KD8102-V Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	14 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Proper use	Outdoor
Product color	Black
Outdoor unit housing material	Plastic
International Protection (IP) code	IP65
Voice codecs	G.711u
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Display aspect ratio	3:2
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Outdoor unit power type	AC/DC
Power consumption (typical)	15 W
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Maximum video resolution	1280 x 720 pixels

Weight and Dimensions

Depth	61 mm
Width	145 mm
Height	418 mm
Door station dimensions (WxDxH)	145 x 61 x 418 mm
