HIKVISION DS-KD8102-V User Manual

Video Intercom Door Station·User Manual
55

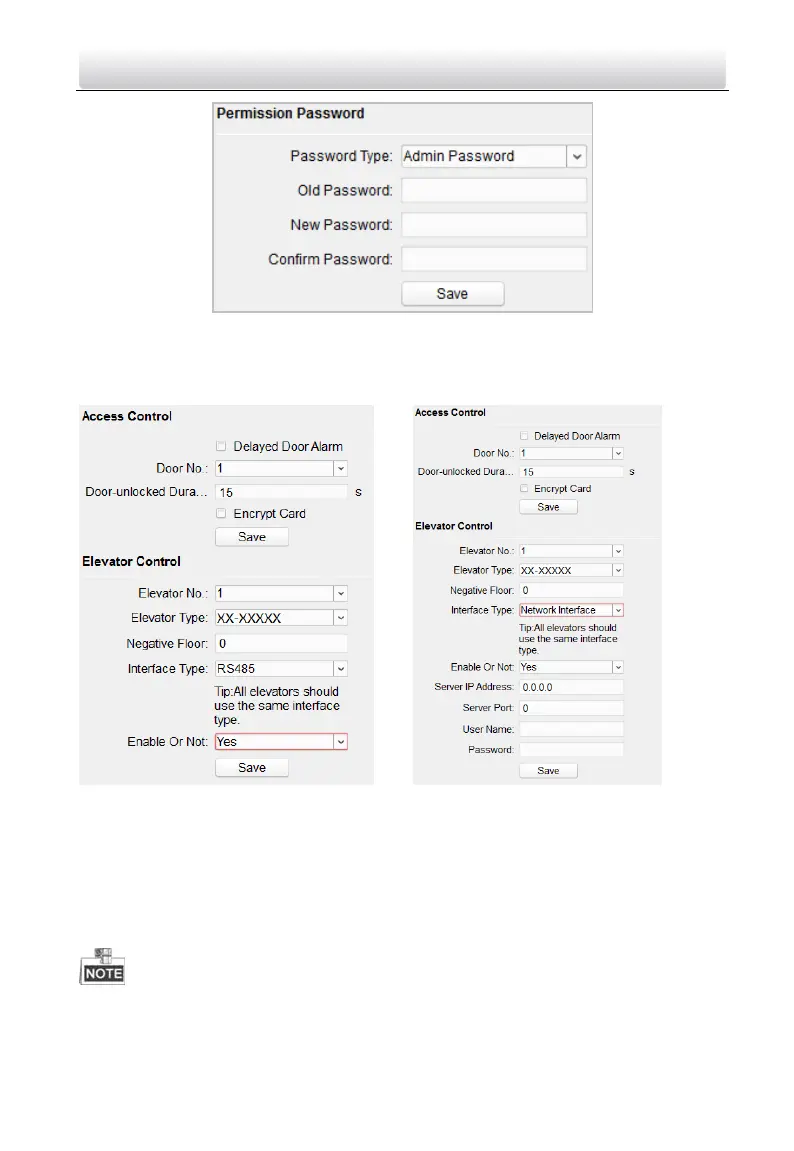

Figure 8-25 Password Configuration
Access Control and Elevator
Click Access Control and Elevator to enter corresponding configuration page.
Figure 8-26 Access Control and Elevator Configuration
Access Control
1. Select the door No.
2. Set the door-unlocked duration.
3. (Optional) Enable Delay Door Alarm.
4. Click Save to enable the settings.
 The door-unlocked duration ranges from 1s to 225s.
 If you check Delayed Door Alarm, an alarm will be triggered automatically if the door
is not locked in the configured duration.

HIKVISION DS-KD8102-V Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	14 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Proper use	Outdoor
Product color	Black
Outdoor unit housing material	Plastic
International Protection (IP) code	IP65
Voice codecs	G.711u
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Display aspect ratio	3:2
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Outdoor unit power type	AC/DC
Power consumption (typical)	15 W
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Maximum video resolution	1280 x 720 pixels

Weight and Dimensions

Depth	61 mm
Width	145 mm
Height	418 mm
Door station dimensions (WxDxH)	145 x 61 x 418 mm
