Video Intercom Door Station·User Manual
89
 Make sure the SIP server IP address of the door station is not configured (or
abnormal).
Steps:
Press Calling Center key on the door station.

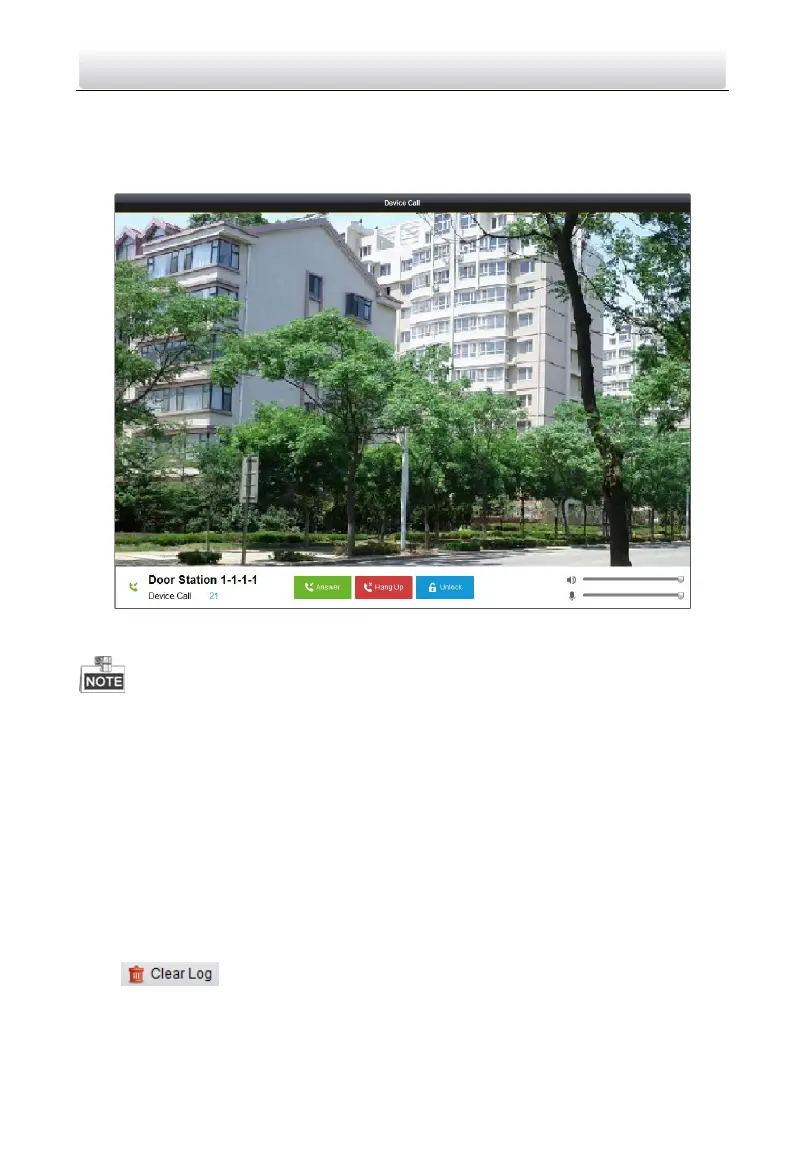

Figure 9-26 Calling from Door Station
 When the SIP server IP of the door station is configured, press Calling Center key on
the door station to call the master station instead of the client software.
 Click Unlock to unlock the building or villa door via the client software, no matter
whether answering the call from door station or not.
 Click Answer to answer the call from door station.
 Click Hang Up to end the call from door station.
Call Log
On the Video Intercom tab page, there are four types of call logs you can search: All,
Dialed, Received, and Missed.
On the dial log area, you can view detail information of the dialog, and click Call to start
the audiovisual call with the indoor station.
Click to clear all logs in the list (optional).

HIKVISION DS-KD8102-V Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	14 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Proper use	Outdoor
Product color	Black
Outdoor unit housing material	Plastic
International Protection (IP) code	IP65
Voice codecs	G.711u
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Display aspect ratio	3:2
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Outdoor unit power type	AC/DC
Power consumption (typical)	15 W
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Maximum video resolution	1280 x 720 pixels

Weight and Dimensions

Depth	61 mm
Width	145 mm
Height	418 mm
Door station dimensions (WxDxH)	145 x 61 x 418 mm
