HIKVISION DS-KV8202-IM User Manual

Video Intercom Door Station·User Manual
25
 The default port No. is 123.
System Maintenance
Purpose:
You can operate the system management and remote upgrading on the system
maintenance interface.
Steps:
1. Click the System Maintenance button to enter the system maintenance interface.

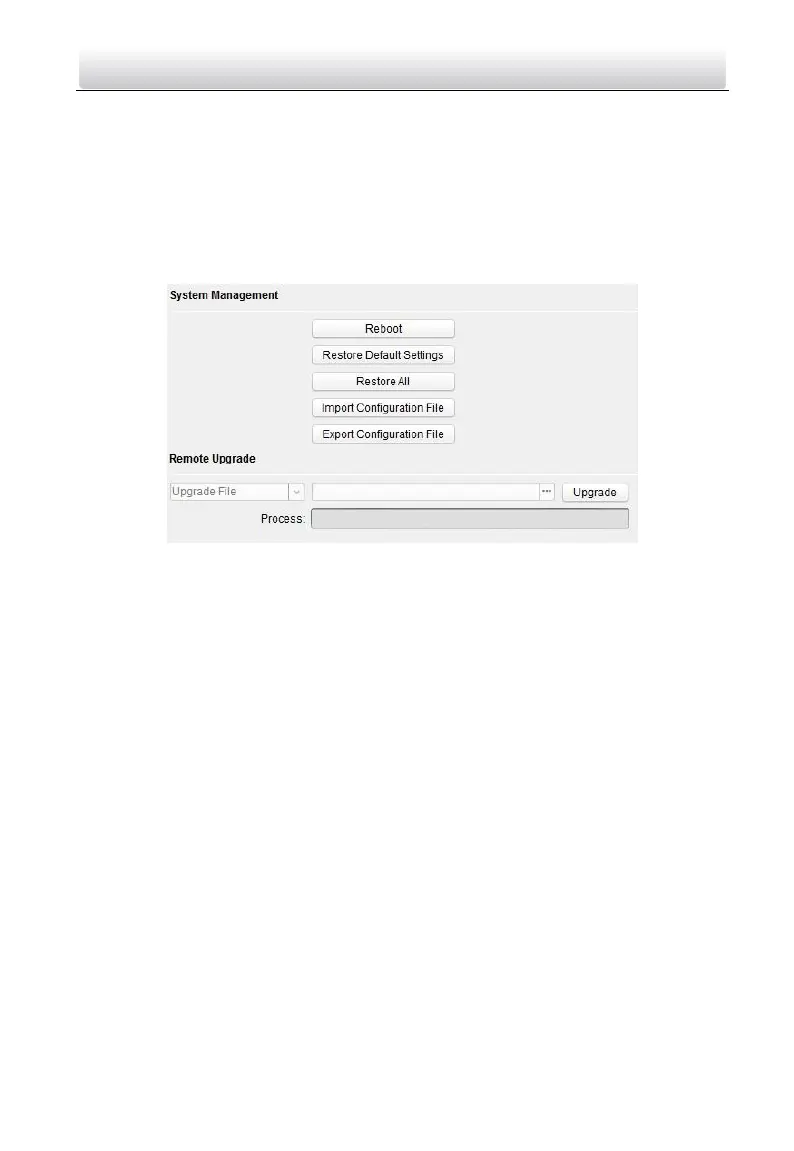

Figure 7-15 System Maintenance
2. Click Reboot and the system reboot dialog box pops up. Click Yes to reboot the
system.
3. Click Restore Default Settings to restore the default parameters.
4. Click Restore All to restore all parameters of device and reset the device to inactive
status.
5. Click Import Configuration File and the import file window pops up. Select the path
of remote configuration files. Click Open to import the remote configuration file. The
configuration file is imported and the device will reboot automatically.

HIKVISION DS-KV8202-IM Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	2 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	25 fps
Maximum video resolution	1280 x 720 pixels
Proper use	Outdoor
Product color	Aluminum
International Protection (IP) code	IP65
LED type	IR
Outdoor unit power type	AC/DC
Power consumption (typical)	12 W
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Operating system installed	Linux
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Indoor unit included	No

Weight and Dimensions

Depth	33 mm
Width	100 mm
Height	182 mm
Door station dimensions (WxDxH)	100 x 33 x 182 mm
