Video Intercom Door Station·User Manual
15
 The dimension of gang box for model DS-KV8102-IP/ DS-KV8102-VP door station is:
75 (width) × 75 (length) × 50 (depth) mm.
 The dimensions above are theoretical. The actual size can be slightly different
from the theoretical dimension.
5.2.2 Wall Mounting with Gang Box of DS-KV8102-XP
Steps:
1. Take the gang box, installation plate and screws from the packing box.
2. Chisel a hole in the wall for inserting the gang box. The size of the hole should be 76
(width) × 76 (length) × 50 (depth) mm.
3. Insert the gang box into the hole, as shown in the figure below.

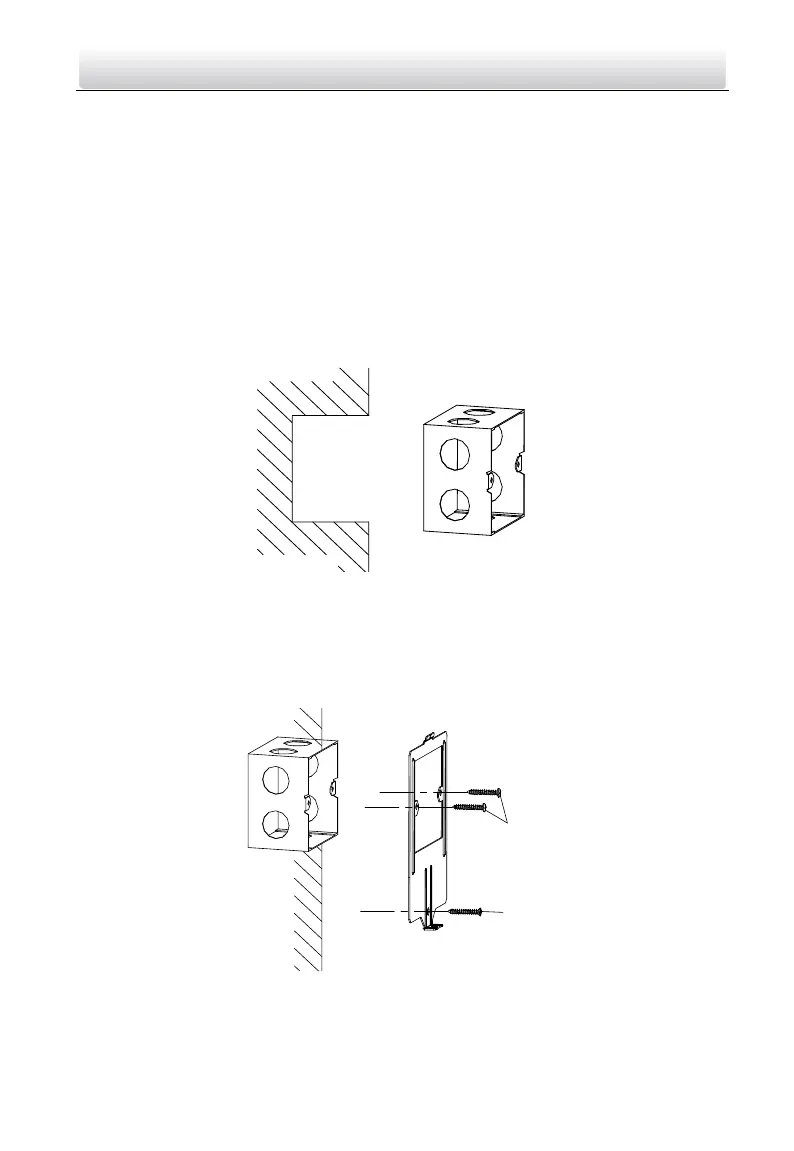

Figure 5-6 Insert the Gang Box (DS-KV8102-XP)
4. Attach the installation plate to the gang box and align the screw holes of the
installation plate with the screw holes of the gang box.
5. Insert 2 PA4 screws and a KA4 screw into the screw holes to fix the installation plate
onto the gang box. (The KA4 screw is optional.)
PA4 Screws
KA4 Screw
Figure 5-7 Attach the Installation Plate (DS-KV8102-XP)

HIKVISION DS-KV8202-IM Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	2 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	25 fps
Maximum video resolution	1280 x 720 pixels
Proper use	Outdoor
Product color	Aluminum
International Protection (IP) code	IP65
LED type	IR
Outdoor unit power type	AC/DC
Power consumption (typical)	12 W
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Operating system installed	Linux
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Indoor unit included	No

Weight and Dimensions

Depth	33 mm
Width	100 mm
Height	182 mm
Door station dimensions (WxDxH)	100 x 33 x 182 mm
