HIKVISION DS-PWA96-DB-WE User Manual

117

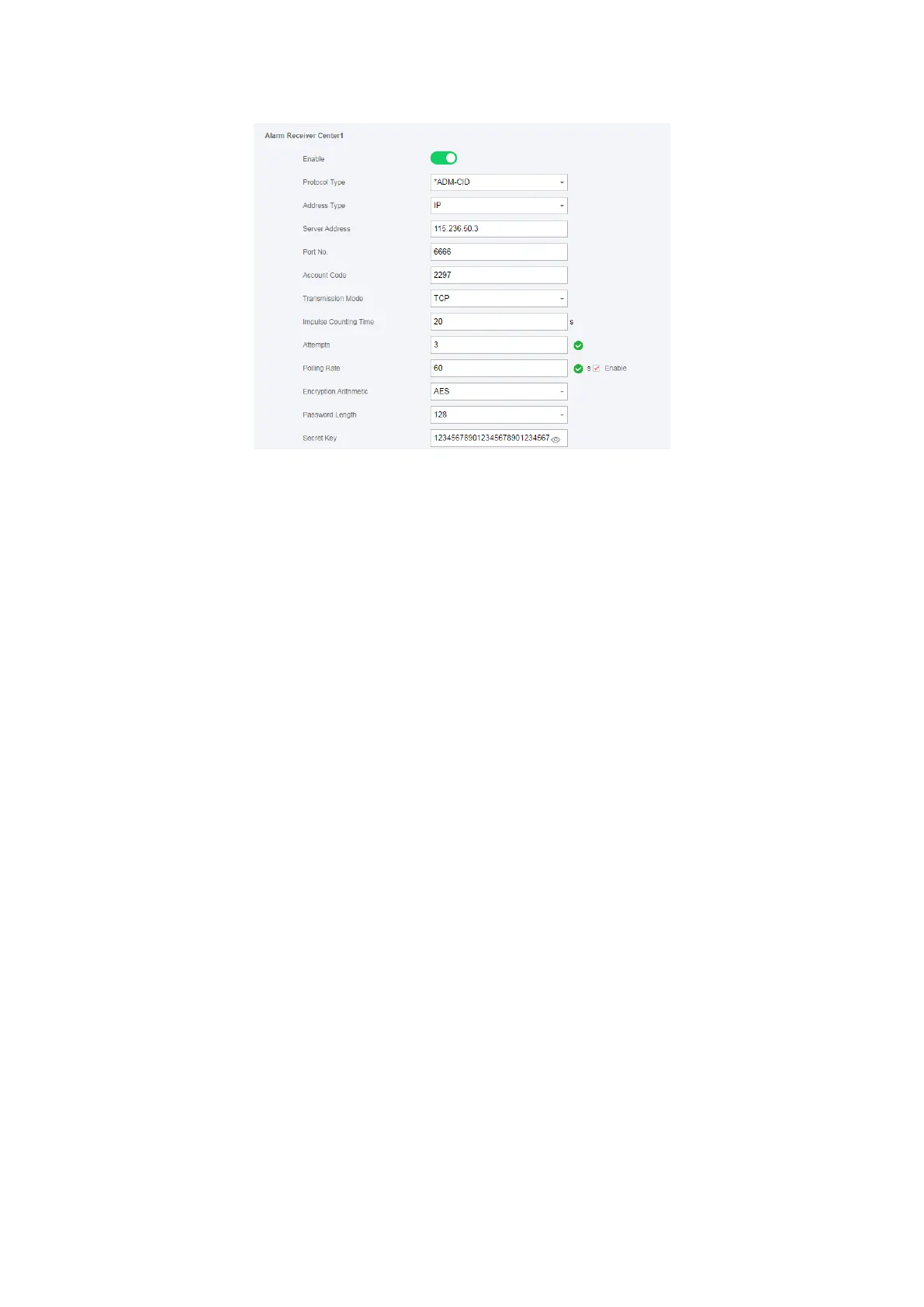

Figure 5-41. ARC1
 = Protocol Setting =
Protocol Type
— ADM-CID
— SIA-DCS
— *ADM-CID
— *SIA-DCS
Select token supported by the receiver in the ARC. Choose the token with “*” mark to
improve the communication security.
 = Server Setting =
 Address Type
— IP
— Domain Name
 Server Address / Domain Name
 Port No.
Input IP address or domain name by which the transceiver of receiving center could be
reached. Input port number of the server provided by the ARC
 = Account Setting =
 Account Code
Input the assigned account provided by the ARC.
 = SIA DC-09 Protocol Setting =
 Transmission Mode
— TCP
— UDP
Both TCP and UDP are supported for transmission. UDP is recommended by the SIA DC-09
