The quadrilateral formed by lane line 1 and the right boundary line of the lane is
the detection area
Trigger line: In coil mode, the trigger line is configured as the actual trigger
position and inside the quadrilateral surrounded by lane lines; in video trigger mode,
the trigger line is set at half of the quadrilateral formed by the lane lines, and is
guaranteed to be within the quadrilateral

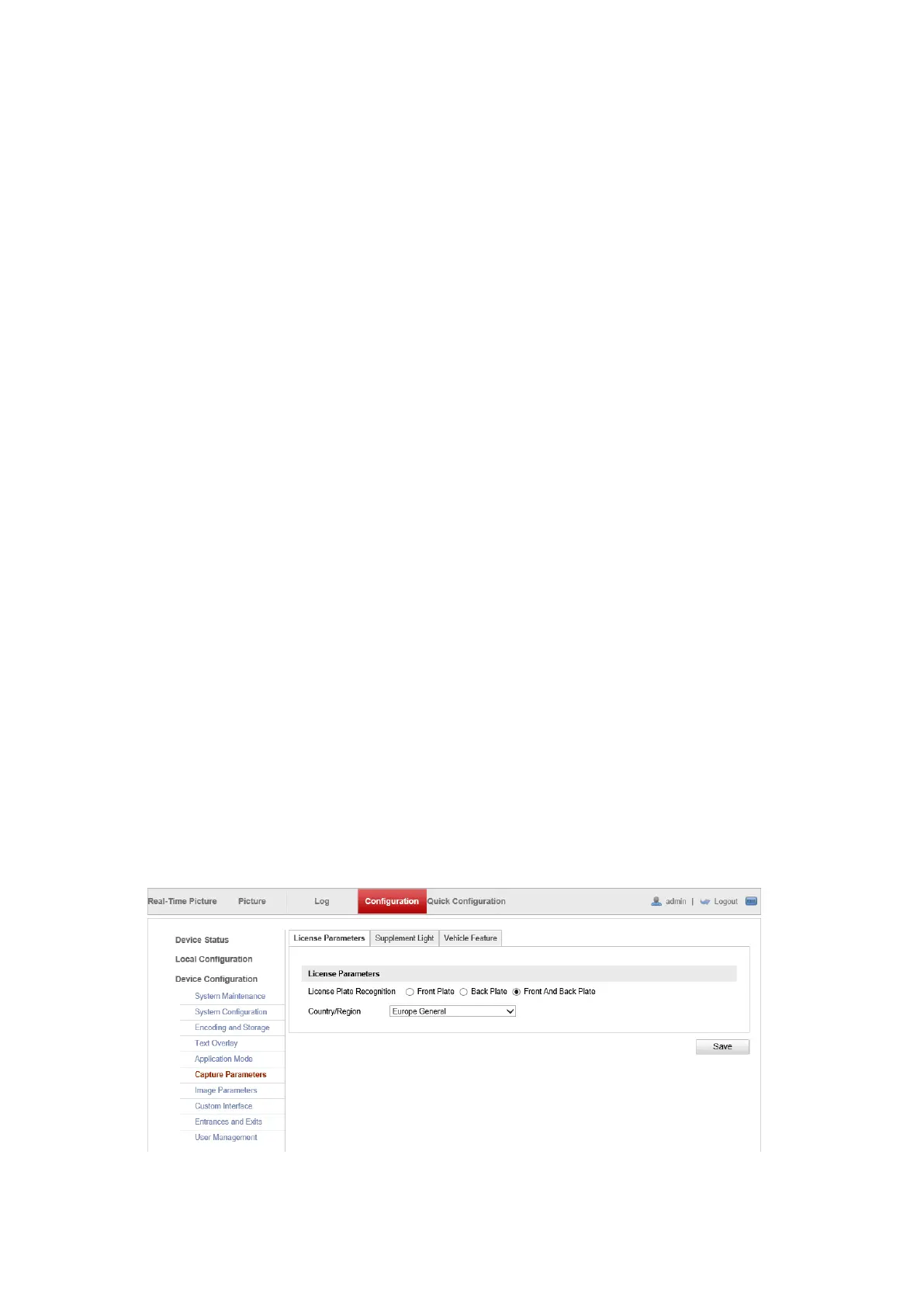

9. Capture Parameters
(1) License Parameters
License plate direction: generally, choose the front and back license plates. When
the video triggers mixed traffic and needs to filter the tail license plate, select the
forward license plate.
(2) Supplement Light
Control Constant Light by Brightness: the lower the brightness threshold, the easier
the fill light is to light up. When the threshold is 0, the fill light is always on.
Control Constant Light by Schedule: enable it according to actual needs, it is
recommended to enable it by schedule
(1) Vehicle Feature
If you want to identify the car model, you need to open any feature parameter here.
After the car logo sub-brand and other information are checked, it can also be
recognized. You can superimpose the relevant information on the character overlay,
and you can see it on the original snapshot.
