2. Drill the screw holes and the cable hole (optional) in the
wall/ceiling according to the drill template.
Note:
Drill the cable hole, if adopting ceiling outlet to route the cable.
Screw
Hole
Cable Hole
3 - Φ 4 mm
Φ 70 mm

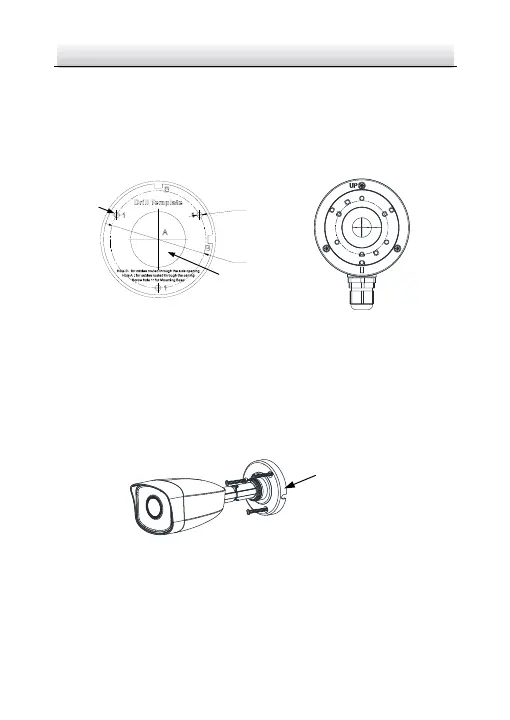

Figure 2-5 The Drill Template
3. Take apart the junction box, and align the screw holes of the bullet
camera with those on the junction box' cover.
4. Fix the camera on the junction box's cover with three PM4 × 10
screws.
Junction Box
Cover
Figure 2-6 Fix the Camera on Junction Box's Cover
5. Secure the junction box's body with three supplied screws on the
wall.
