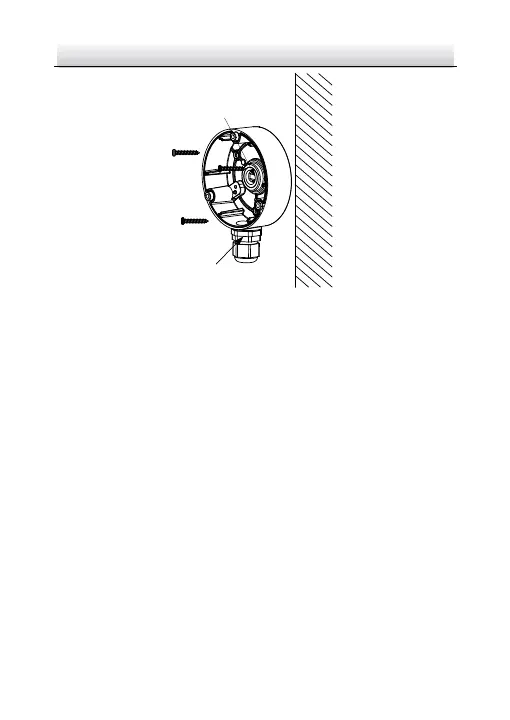

Figure 2-7 Fix the Junction Box on the Wall
6. Route the cables through the cable hole. Here we take bottom
cable hole as the example to describe the installation.
1). Separate the waterproof cover and the cable gland from the
junction box.
2). Route the cable through the bottom cable hole and the
cable gland.
3). Screw the cable gland back on the bottom cable hole.
4). Screw the waterproof cover back on the side cable hole.
7. Combine the junction box cover with its body with three screws
on the junction box's cover.
