Network Video Recorder User Manual
61
Note
If you set Settings as Nonuse, the alarm input will be disabled. If you set Settings as One-Key
Disarmig, the selected linkage method(s) of the alarm input will be disabled.
6. Set the arming schedule. Refer to Configure Arming Schedule for details.
7. Set the linkage actions. Refer to Configure Alarm Linkage Action for details.
8. Click Apply.
Alarm Output
Trigger an alarm output when an alarm is triggered.
Steps
1. Go to Configuration → Event → Normal Event → Alarm Output.

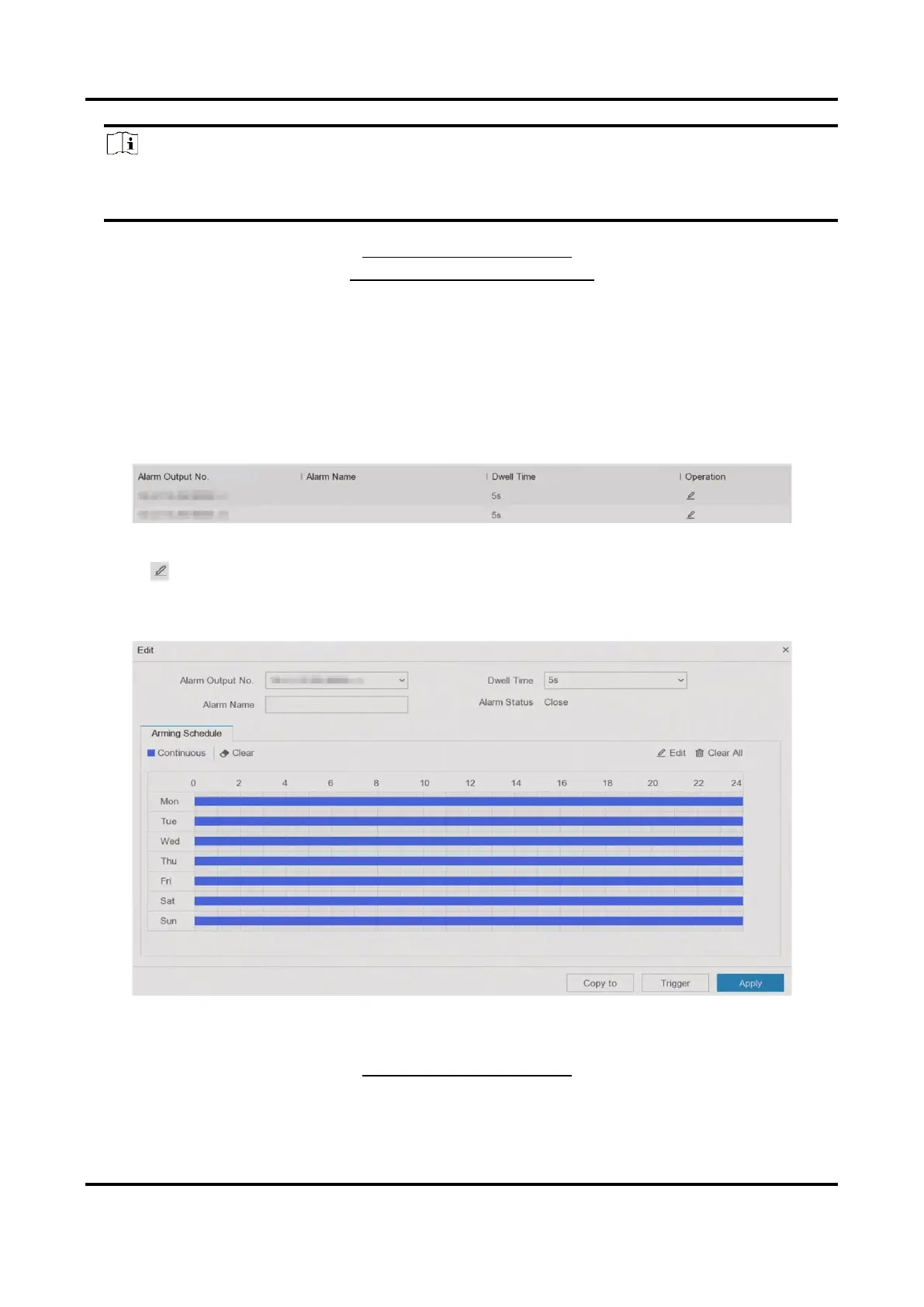

Figure 6-22 Alarm Output
2. Click of a desired alarm output.
3. Customize Alarm Name.
4. Select Dwell Time.
Figure 6-23 Edit Alarm Output
5. Set Settings as Input to enable the function.
6. Set the arming schedule. Refer to Configure Arming Schedule for details.
7. Click Apply.
