HIKVISION HiLook Series User Manual

 Do not aim the camera at the sun or extra bright
places.
 The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
 Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
 To avoid heat accumulation, good ventilation is
required for the operating environment.
 Keep the camera away from liquid while in use for
non-water-proof device.
 While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.

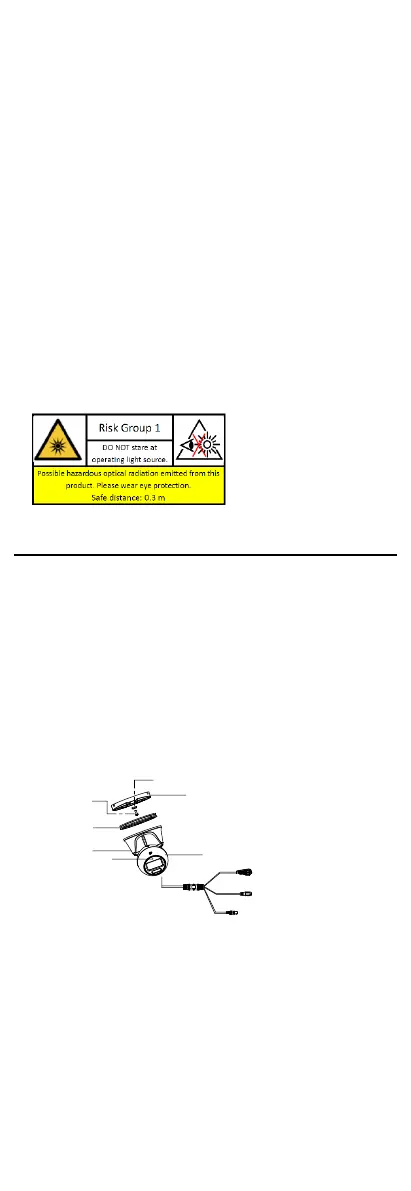

 The beam of the light at the distance of 200 mm is
classified as Risk Group 1 (RG1). Possible hazardous
optical radiation emitted from this product.
 DO NOT stare at operating light source. May be
harmful to the eyes.
 Wear appropriate eye protection or turn on the
supplement light only at a safe distance (0.3 m) or in
the area that is not directly exposed to the light when
installing or maintaining the device.
1 Introduction
1.1 Product Features
The main features are as follows:
 High performance CMOS sensor
 Smart light
 4 in 1 video output
 Audio over coaxial cable
1.2 Overview
1.2.1 Overview of Type I Camera
Screw
Clip Plate
Mounting Base
Trim Ring
Enclosure
Main Body
Switch Button
Power Cord
Audio & Video Cable
Microphone
Figure 1-1 Overview of Type I Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.

HIKVISION HiLook Series Specifications

General

Power Supply	12 VDC
Video Compression	H.264/H.265
Analog Video Input	Depends on model
CVBS Input	Depends on model
Video Output	HDMI/VGA
Audio Compression	G.711
Audio Input	Depends on model
Audio Output	Depends on model
Two-Way Audio	Depends on model
Hard Disk	SATA
Capacity	Up to 10TB (depends on model)
Network Interface	RJ45 10M/100M
USB Interface	USB 2.0
Consumption	Depends on model
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Dimensions	Depends on model
Weight	Depends on model
HDTVI Input	Depends on model
AHD Input	Depends on model
HDCVI Input	Depends on model
IP Video Input	Depends on model
