HWN-2100MH-W Series
The rear panel vaires according to different models.

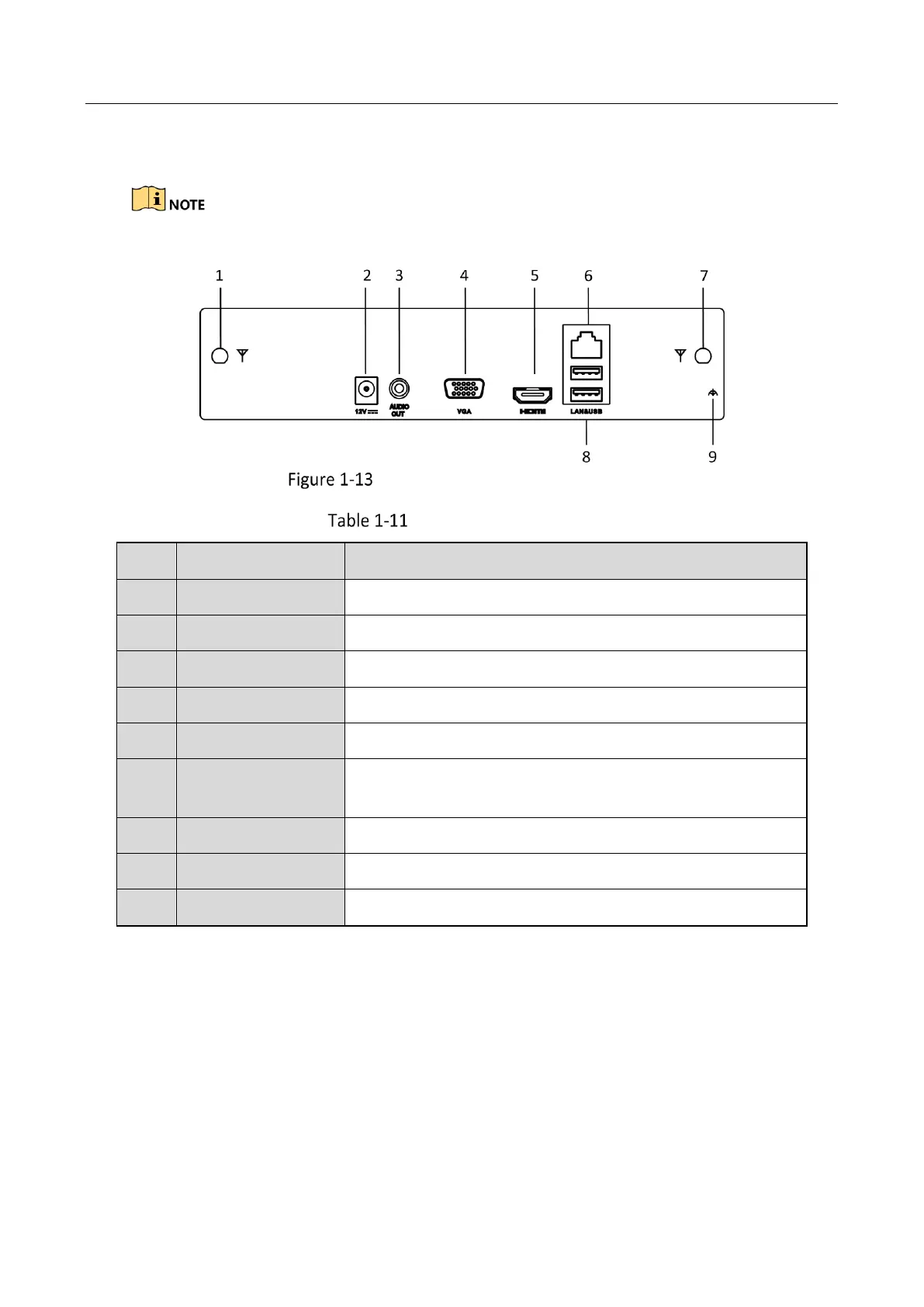

HWN-2100MH-W Series Rear Panel
Description of Rear Panel
No.
Name
Description
1
Wi-Fi Antenna
Wi-Fi antenna interface.
2
Power supply
12 VDC power supply.
3
Audio out
1 RCA connectors for audio output.
4
VGA
VGA video output connector.
5
HDMI
HDMI video output connector.
6
LAN
One RJ-45 10M/100M self-adaptive Ethernet interfaces
provided.
7
Wi-Fi Antenna
Wi-Fi antenna interface.
8
USB
Two USB 2.0 interface.
9
Ground
Ground (needs to be connected when device starts up).
