HIKVISION HWN-2108MH-8P - Rear Panel; HWN-2100 H and HWN-2100 MH Series

Network Video Recorder User Manual
26
Rear Panel
HWN-2100H and HWN-2100MH Series

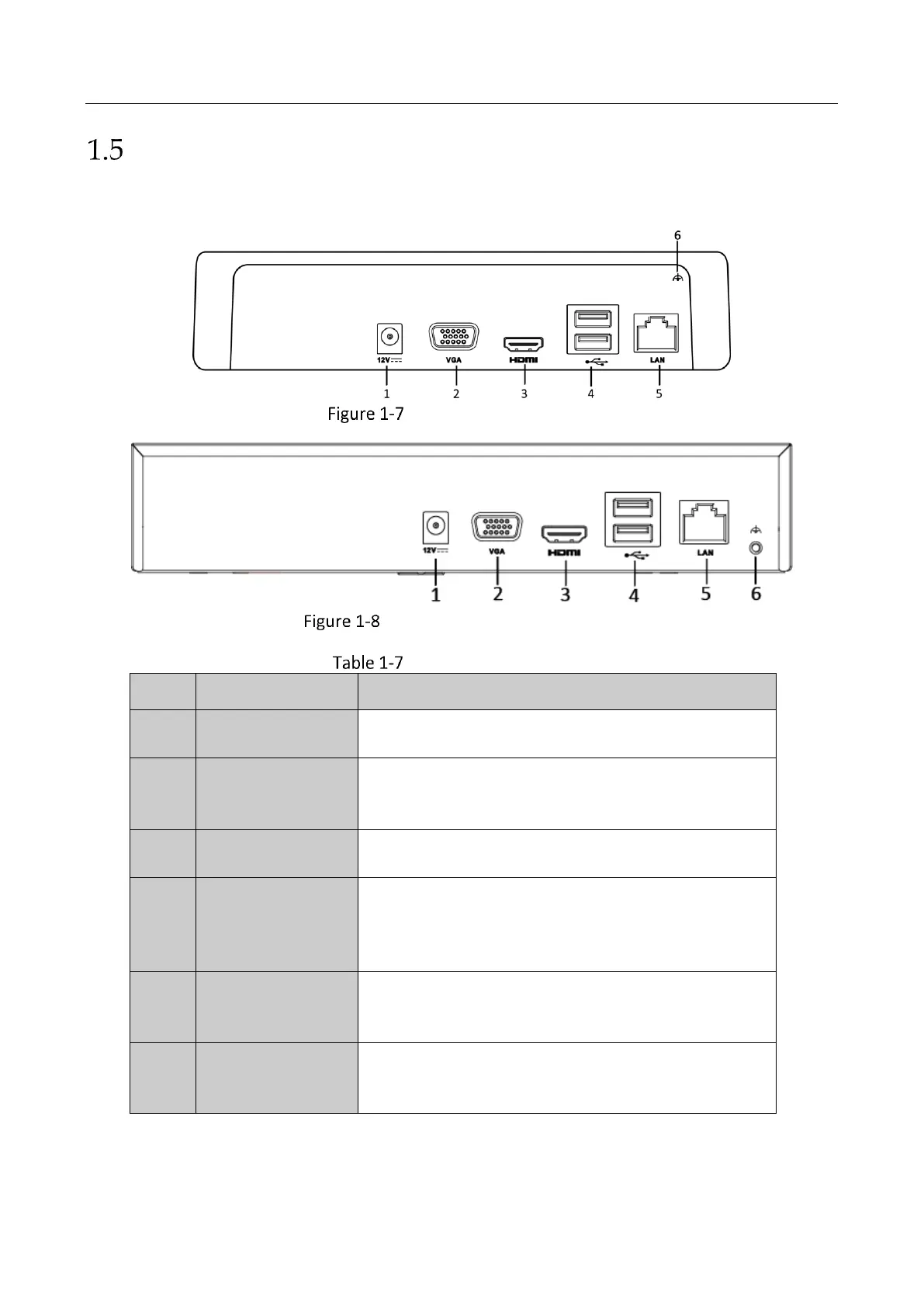

HWN-2100H Rear Panel
HWN-2100MH Series Rear Panel
Description of Rear Panel
No.
Item
Description
1
Power Supply
12 VDC power supply.
2
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
3
HDMI Interface
HDMI video output connector.
4
USB Interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
5
LAN Network
Interface
1 10 /100 /1000 Mbps self-adaptive Ethernet
interface.
6
Ground
Ground (needs to be connected when NVR starts
up).
