Panel Description
No.
Name
Description
1
Status
Indicator
Power
Power indicator turns green when system is
running.
Status
Status indicator blinks red when data is being
read from or written to HDD.
Tx/Rx
Tx/Rx indictor blinks green when network
connection is functioning properly.
2
USB Interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
HWN-2100, HWN-2100(M)H-W and HWN-4200MH(-P) Series
The front panel vaires according to different models.
HWN-2100, HWN-2100(M)H-W and HWN-4200MH(-P) Series
Panel Description
IR Remote Control Operations

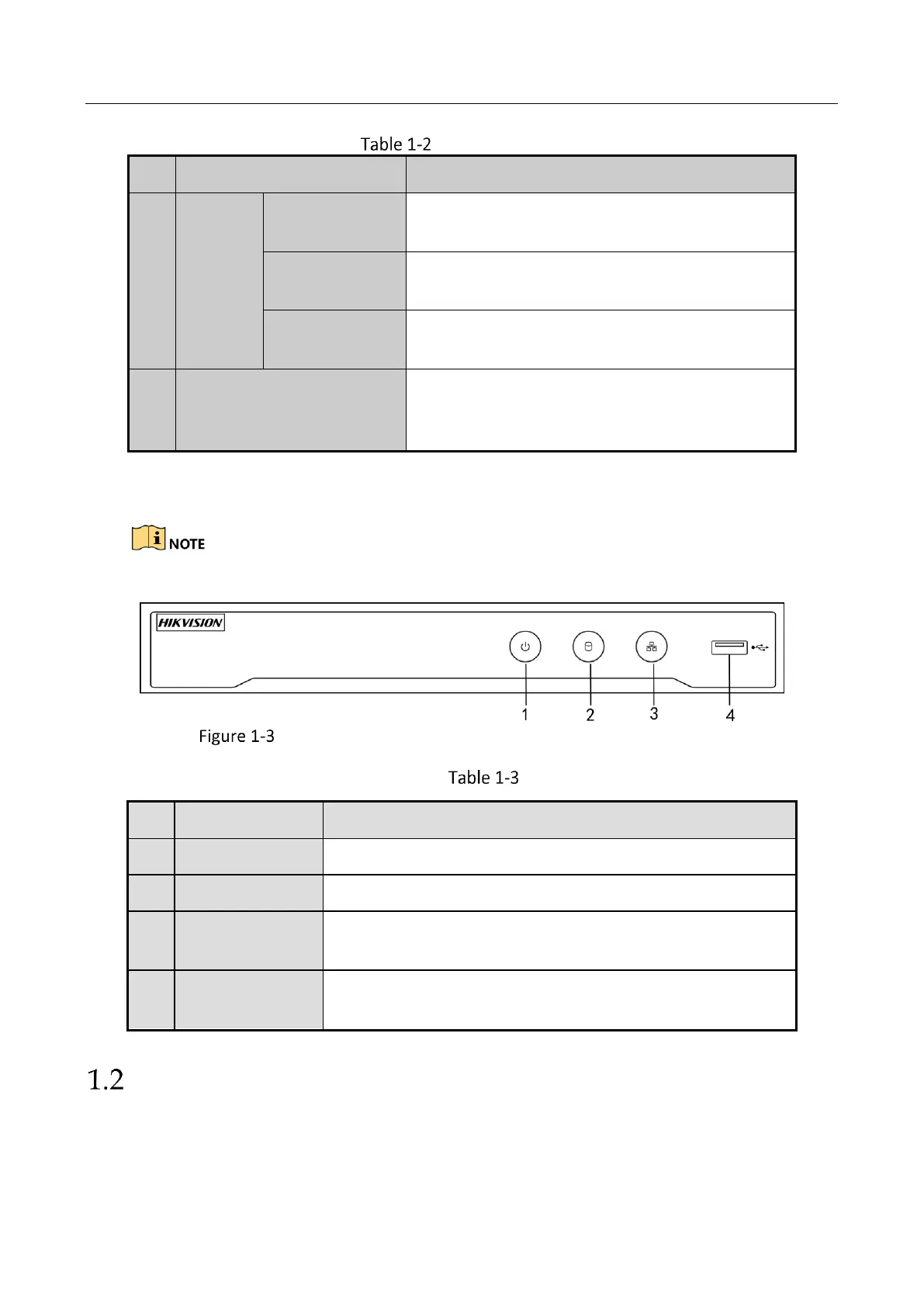

The NVR may also be controlled with the included IR remote control, shown in Figure 1-4.
No.
Name
Connections
1
POWER
Turns green when NVR is powered up.
2
HDD
Flickers red when data is being read from or written to HDD.
3
Tx/Rx
Flickers blue when network connection is functioning
properly.
4
USB Interface
Universal Serial Bus (USB) port for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
