HIKVISION HWN-2108MH-8P - HWN-4100 MH and HWN-4200 MH Series; HWN-4100 MH-P and HWN-4200 MH-P Series

Network Video Recorder User Manual
31
HWN-4100MH and HWN-4200MH Series

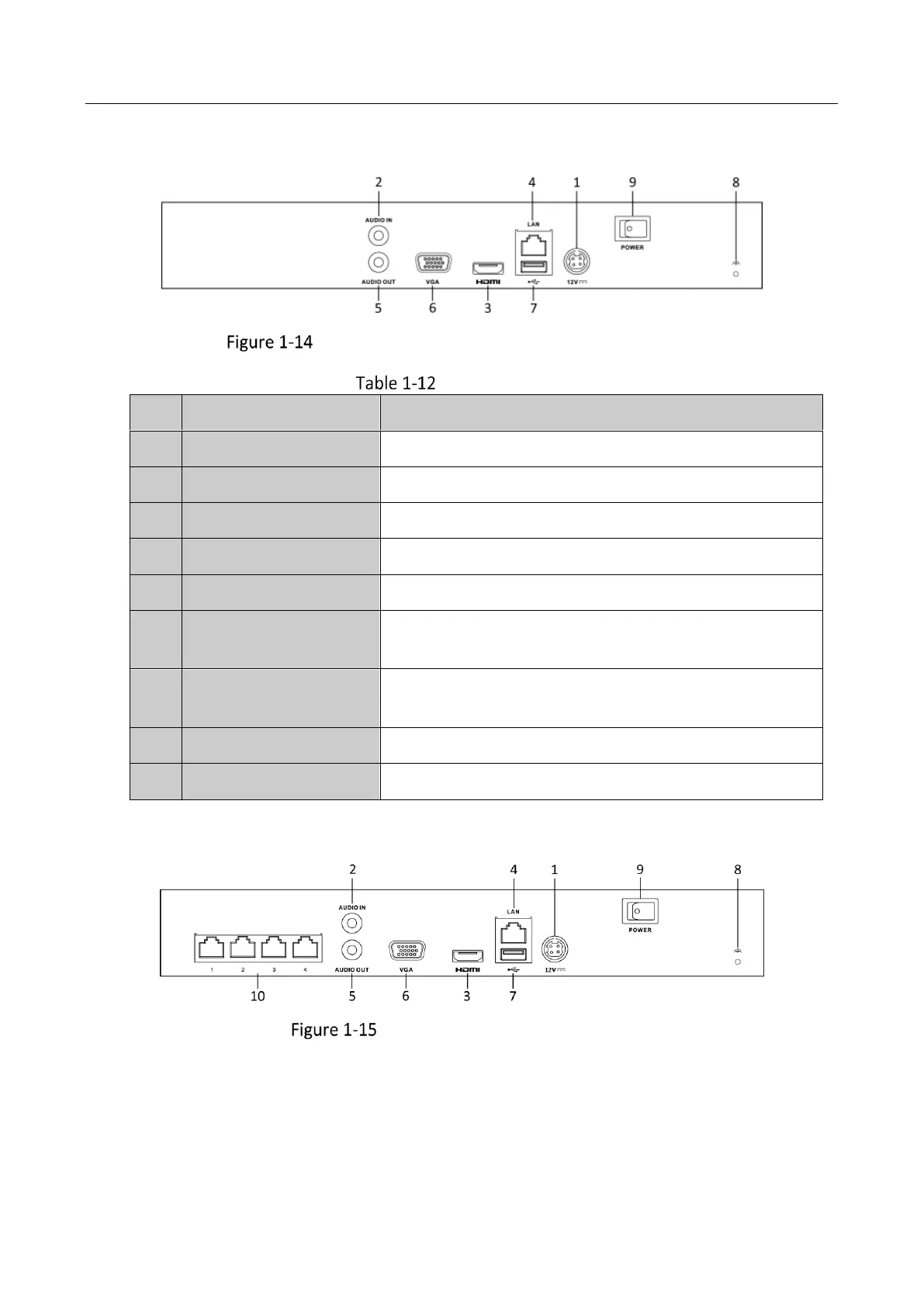

HWN-4100MH and HWN-4200MH Series Rear Panel
Panel Description
HWN-4100MH-P and HWN-4200MH-P Series
HWN-4100MH-P Series Rear Panel
No.
Item
Description
1
Power Supply
12 VDC power supply.
2
Audio In
RCA connector for audio input.
3
HDMI Interface
HDMI video output connector.
4
LAN Network Interface
1 10 /100 /1000 Mbps self-adaptive Ethernet interface.
5
Audio Out
RCA connector for audio output.
6
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
