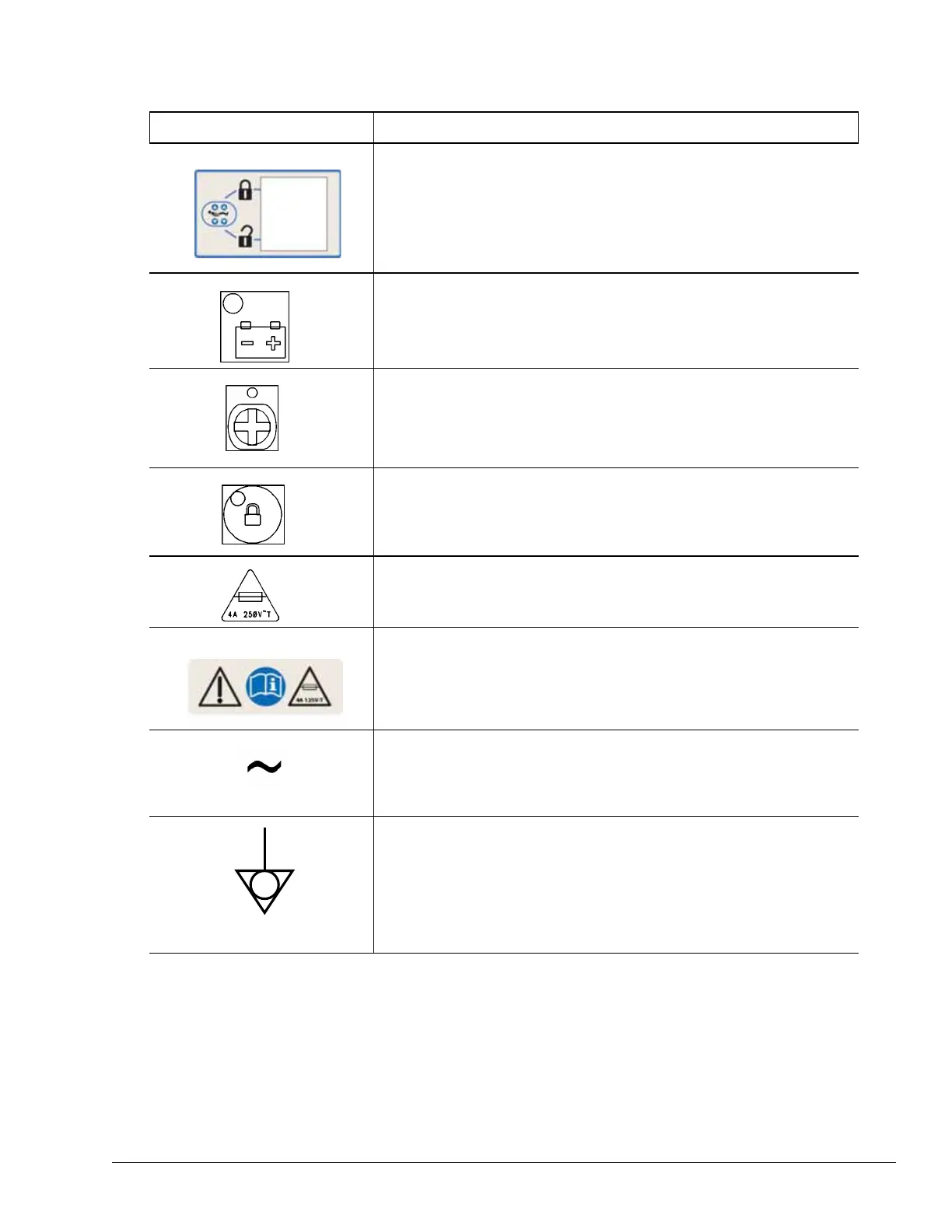

Symbols
Affinity® Three Birthing Bed and Affinity® Four Birthing Bed User Manual (USR025 REV 6) 5
Lockout control label—The switch in the up position indicates the
lockout control is on. The switch in the down position indicates the
lockout control is off (refer to the section titled “Lockout Controls” on
page 20 for lockout status information). E model and newer beds.
Battery charge status (refer to the section titled “Battery Backup” on
page 11 for battery status information).
Nurse call (refer to the section titled “Nurse Call (Optional)” on
page 14 for nurse call switch information).
Lockout control status—when the lockout control status light is on,
the lockout function is activated.
Identifying mains fuse.
Caution: Identifying power inlet fuse or a battery power inlet fuse.
Consult accompanying documentation. E model and newer beds.
Alternating current
Equipotentiality. Beds with grounding post only. A through E model
beds.
Symbol Description
