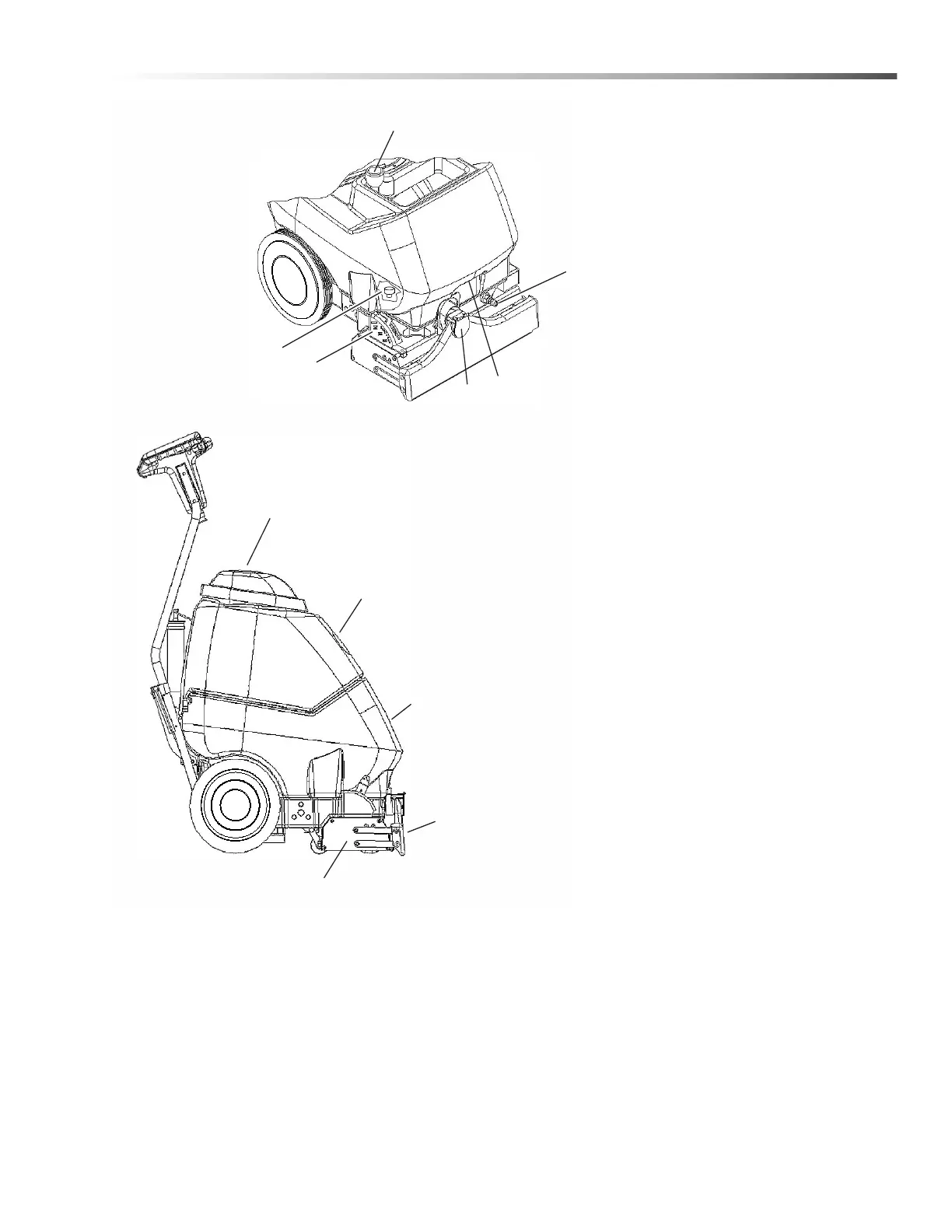

1. Solution Accessory Tool Hookup.
Used for various auxiliary cleaning
tools.
2. Vacuum Hose Door. Used to connect
various auxiliary 1 ½ inch cleaning tool
vacuum hoses.
3. Brush Height Adjustment. Used to
regulate brush height from storage
position to various carpet heights.
4. Recovery Tank. Used to collect dirty
cleaning solution.
5. Solution Tank. Used to hold cleaning
solution.
6. Recovery Tank Dome.
7. Vacuum Shoe.
8. Brush Housing.
9. Front Lifting Handle.
10. Cleaning Solution Filter.
11. Solution Tank Fill Hose.
