3 Description

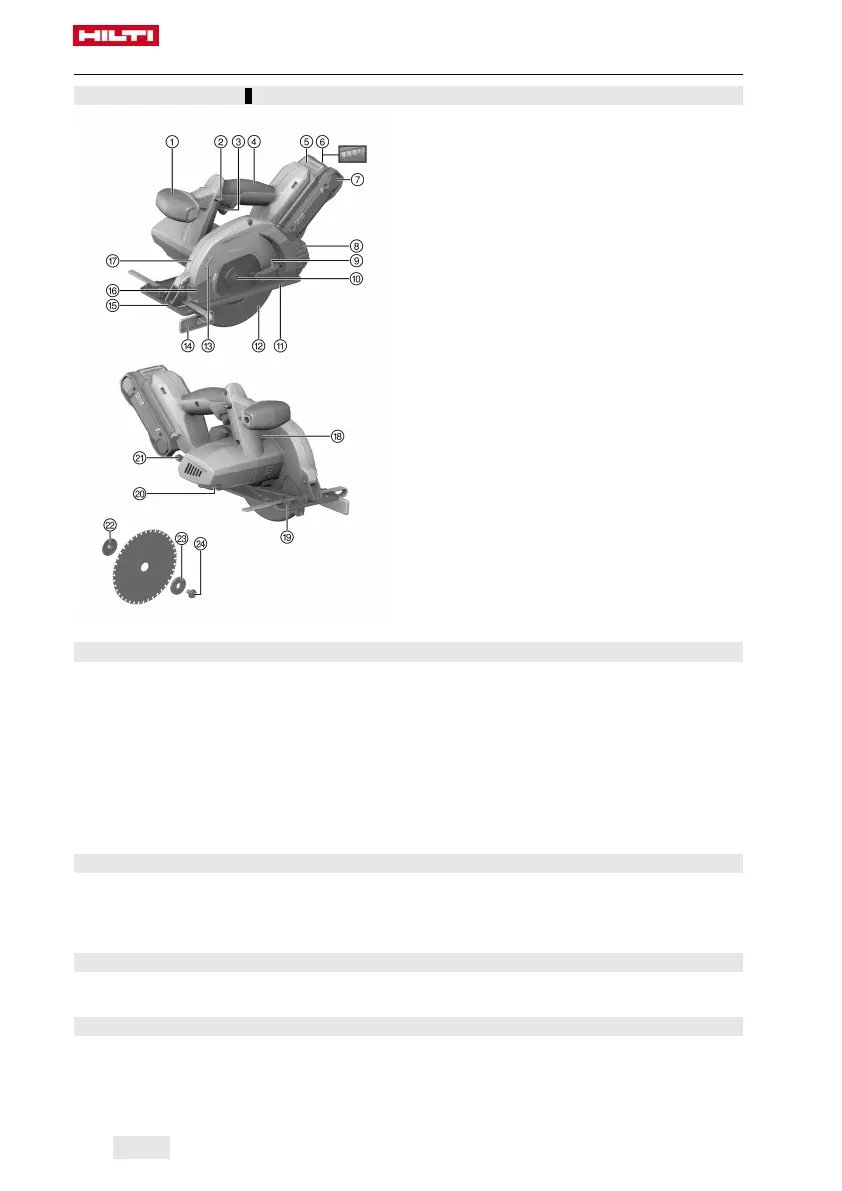

3.1 Product overview 1
@
Auxiliary grip
;
Switch-on interlock
=
On/off switch
%
Grip
&
Battery release button
(
Battery status indicator
)
Battery
+
Chip collector
§
Pivoting guard operating lever
/
Arbor
:
Base plate
∙
Pivoting guard
$
Direction-of-rotation arrow
£
Fence
|
Cutting line indicator
¡
LED / viewing window
Q
Guard
W
Spindle lock button
E
Clamp for fence
R
Hex key
T
Clamping lever for cutting depth adjustment
Z
Mounting flange
U
Clamping flange
I
Clamping screw
3.2 Intended use
The product described is a cordless circular saw. It is designed for cutting metal or materials similar to metal.
Use only saw blades approved for the product that comply with the specifications set out in the technical
data (e.g. diameter, speed of rotation, thickness, material, etc...). Grinding and cut-off wheels and saw
blades made of highly alloyed high speed steel (HSS) are not permissible. Do not use the saw to cut wood
or wood-like materials, plastics, gypsum board, gypsum fiberboard and composite materials.
• For this product, use only Hilti Nuron lithium-ion batteries of the B 22 series. For this product, Hilti
recommends the use of the batteries stated in the table at the end of these operating instructions.
• For these batteries, use only Hilti chargers of the type series listed at the end of these operating
instructions.
3.3 Items supplied
Circular saw, saw blade, hex key, fence, chip collector, operating instructions.
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group
3.4 Accessories
Clamping flange, mounting flange, clamping screw
3.5 Status indicators of the Liion battery
Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and the battery's state of health.
