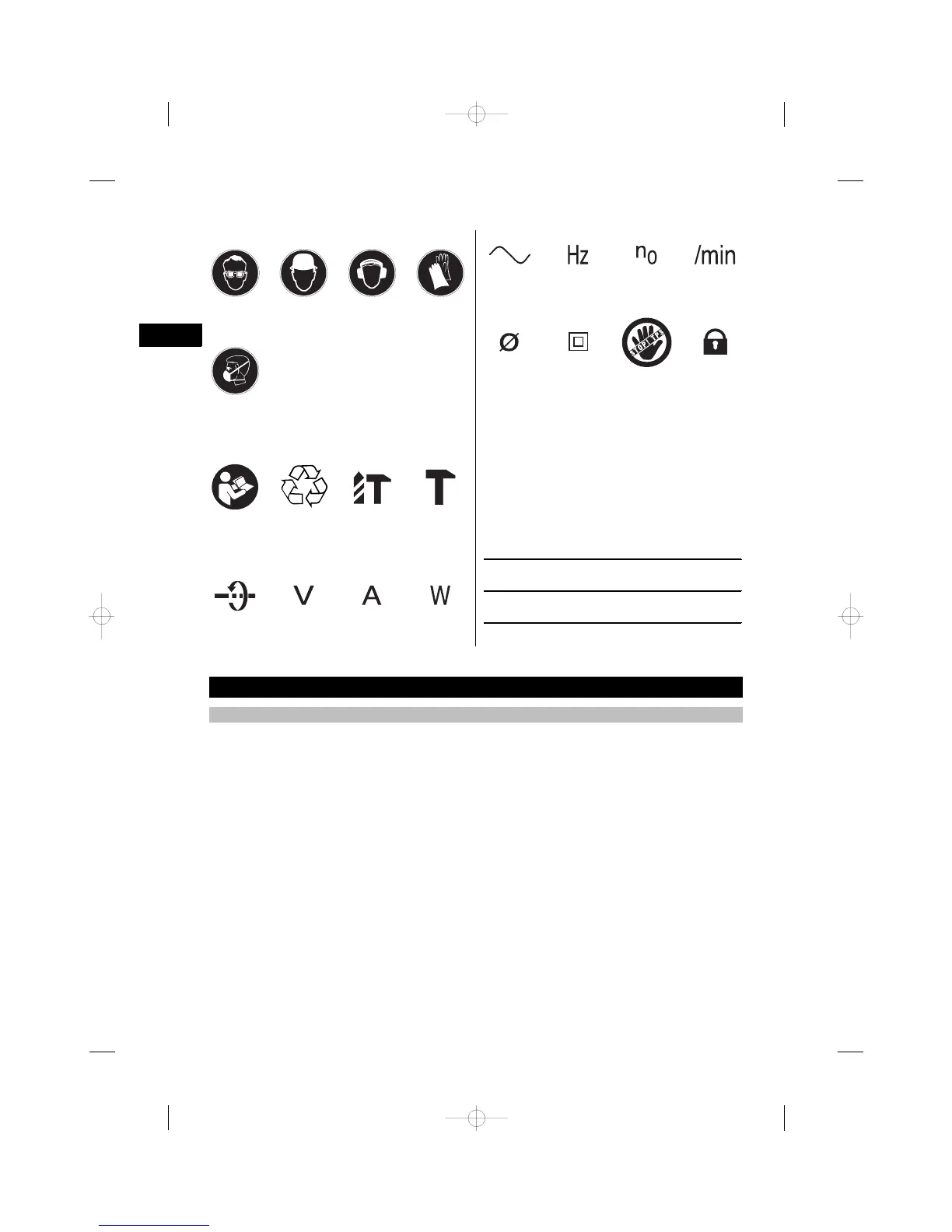

Obligation signs
Wear eye
protection
Wear a hard
hat
Wear ear
protection
Wear
protective
gloves
Wear
breathing
protection
Symbols
Read the
operating
instructions
before use
Return waste
material for
recycling.
Hammer
drilling
Chiseling
Chisel position
adjustment
Volts Amps Watts
Alternating
current
Hertz Rated speed
under no load
Revolutions
per minute
Diameter Double
insulated
Equipped with
theft
protection
system
Lock symbol
Location of identification data on the power tool
The type designation can be found on the type iden-
tification plate and the serial number on the side of
the motor housing. Make a note of this data in your
operating instructions and always refer to it when
making an enquiry to your Hilti representative or
service department.
Type:
Generation: 01
Serial no.:
2. Description
2.1 Use of the product as directed
The power tool is an electrically-powered combihammer with pneumatic hammering mechanism. The ATC
(Active Torque Control) function of the TE 80-ATC / TE 70‑ATC provides greater operating comfort while
drilling.
The tool is designed for drilling in concrete, masonry, metal and wood and can also be used for chiseling.
Under certain conditions, the power tool is suitable for use for mixing (see “Tools, accessories” and
“Operation”).
Working on materials hazardous to the health (e.g. asbestos) is not permissible.
Nationally applicable industrial safety regulations must be observed.
The power tool is designed for professional use and may be operated, serviced and maintained only by trained,
authorized personnel. This personnel must be informed of any special hazards that may be encountered. The
power tool and its ancillary equipment may present hazards when used incorrectly by untrained personnel or
when used not as directed.
The working environment may be as follows: construction site, workshop, renovation, conversion or new
construction.
The power tool may be used only in a dry environment.
Do not use the power tool where there is a risk of fire or explosion.
The power tool may be operated only when connected to a power supply providing a voltage and frequency in
compliance with the information given on its type identification plate.
