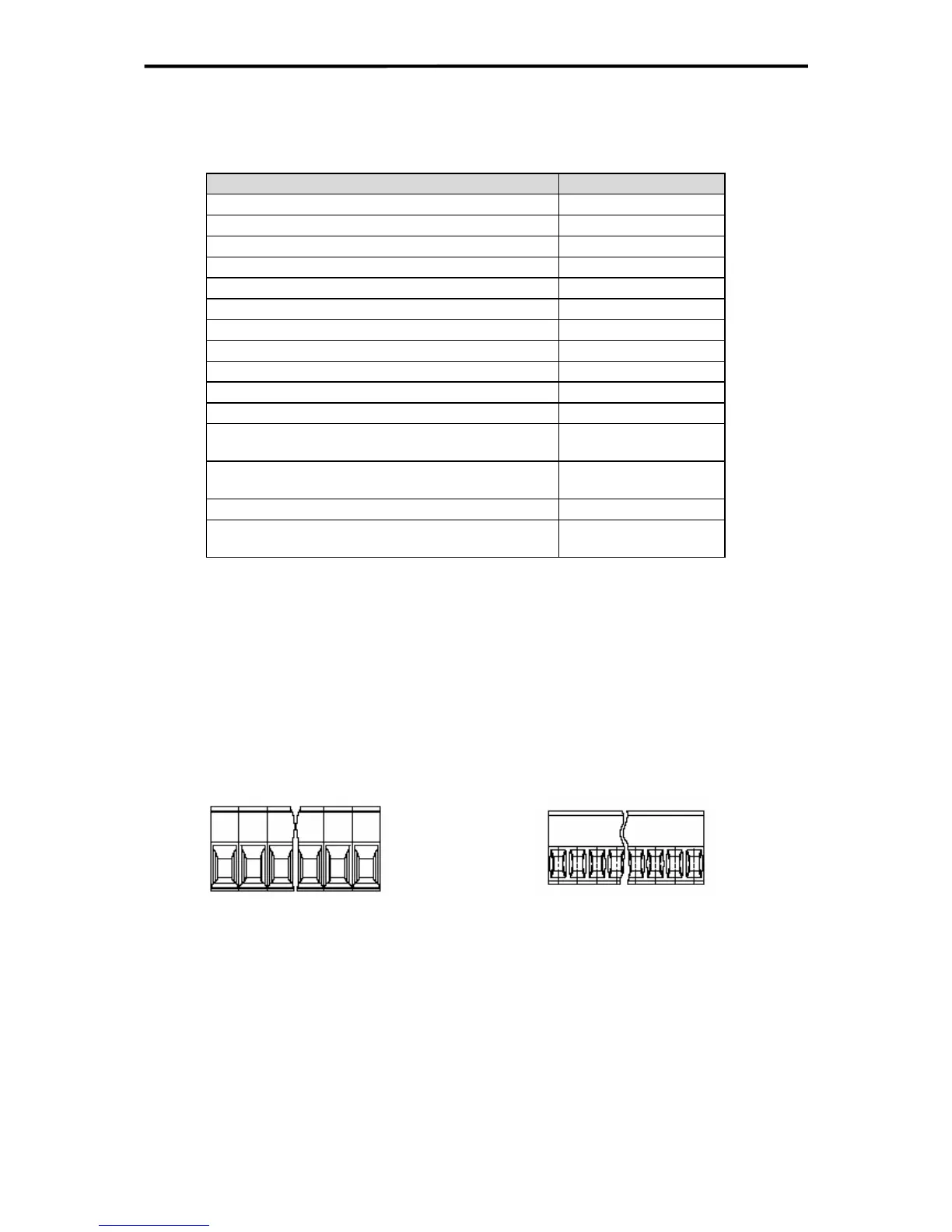

3.2.3 Assembly Heights
Because of the connectors for communication and I/O level the HIMatrix devices require the
assembly heights shown in the table below. With compact devices they apply from the fixing
rail:
HIMatrix device Assembly height
F60 270 mm
F1 DI 16 01 100 mm
F2 DO 4 01 100 mm
F2 DO 8 01 120 mm
F2 DO 16 01 100 mm
F2 DO 16 02
120 mm
F3 DIO 8/8 01 100 mm
F3 DIO 16/8 01 100 mm
F3 DIO 20/8 01 100 mm
F3 DIO 20/8 02 100 mm
F3 AIO 8/4 01 100 mm
F20 with Profibus connector*
without Profibus connector
----* mm
100 mm
F30 with Profibus connector*
without Profibus connector
----* mm
100 mm
F31 100 mm
F35 with Profibus connector*
without Profibus connector
----* mm
100 mm
Table 1: Assembly heights
*Assembly height = height HIMatrix + height of Profibus connector
Right connector : 100 mm + 50 mm
45º connector : 100 mm + 40 mm
90º connector : 100 mm + 35 mm
3.2.4 Pluggable Cable Dimensions
At the terminals and plugs of the HIMatrix Compact Systems and the Modular System F60
the following cable dimensions with wire ends are pluggable:
Power supply Terminal
up to 2.5 mm
2
up to 1.5 mm
2
3.3 Heat Contemplation
The increasing integration of electronic components results in increasing heat dissipation.
The amount of heat depends on the external load on the HIMatrix devices. Therefore, de-
pending on the design of the installation, the devices and the air distribution are significant.
It is important to comply with the approved environmental conditions when installing the de-
vices. A reduced operating temperature extends the service life and reliability of the installed
components.
14 of 61
