HI 800 101 HIMatrix Engineering Manual

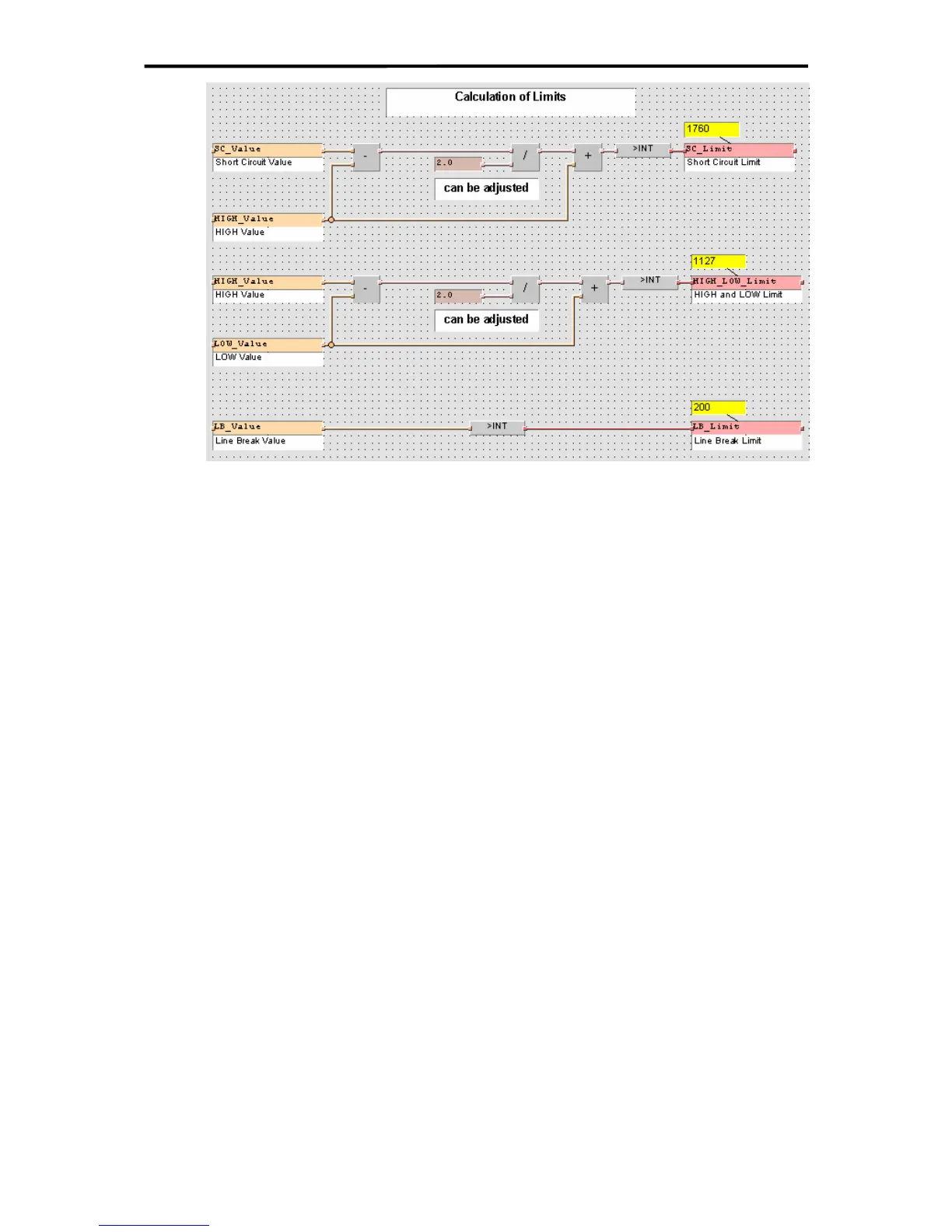

Figure 30: Function block – limit for line break, short-circuit, open and closed contact
The input resistance of a digital input is 6900 Ohm.
50 of 61
