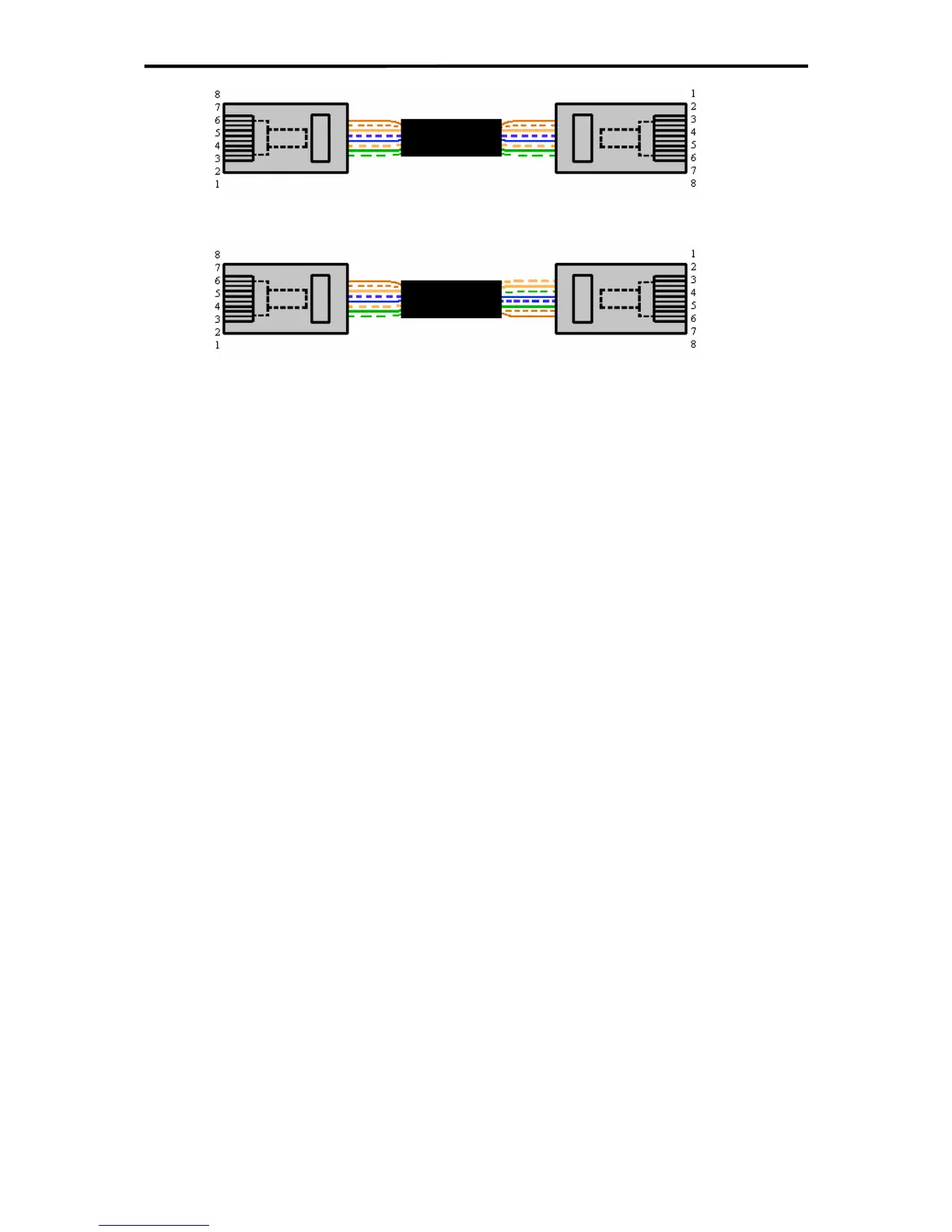

Figure 16: Pin assignment 1:1 patch cable according to EIA/ITA 568B
Figure 17: Pin assignment crossover cable according to EIA/ITA 568B
5.4.1.4 Switches
To span distances of more than 100 m with Ethernet communication for example the
rail switches of the RS2-... series (manufacturer Hirschmann
®
)
can be used with optical fibre ports.
