X-CPU 01 3 Product Description

HI 801 009 E Rev. 4.00 Page 17 of 52

3.4.11 Indicators

The following figure shows the LED indicators for the processor module. These LEDs are

located on the front plate, on the upper part of the module. The mode switch described in

Chapter

3.4.18 is also located on the front plate of the module.

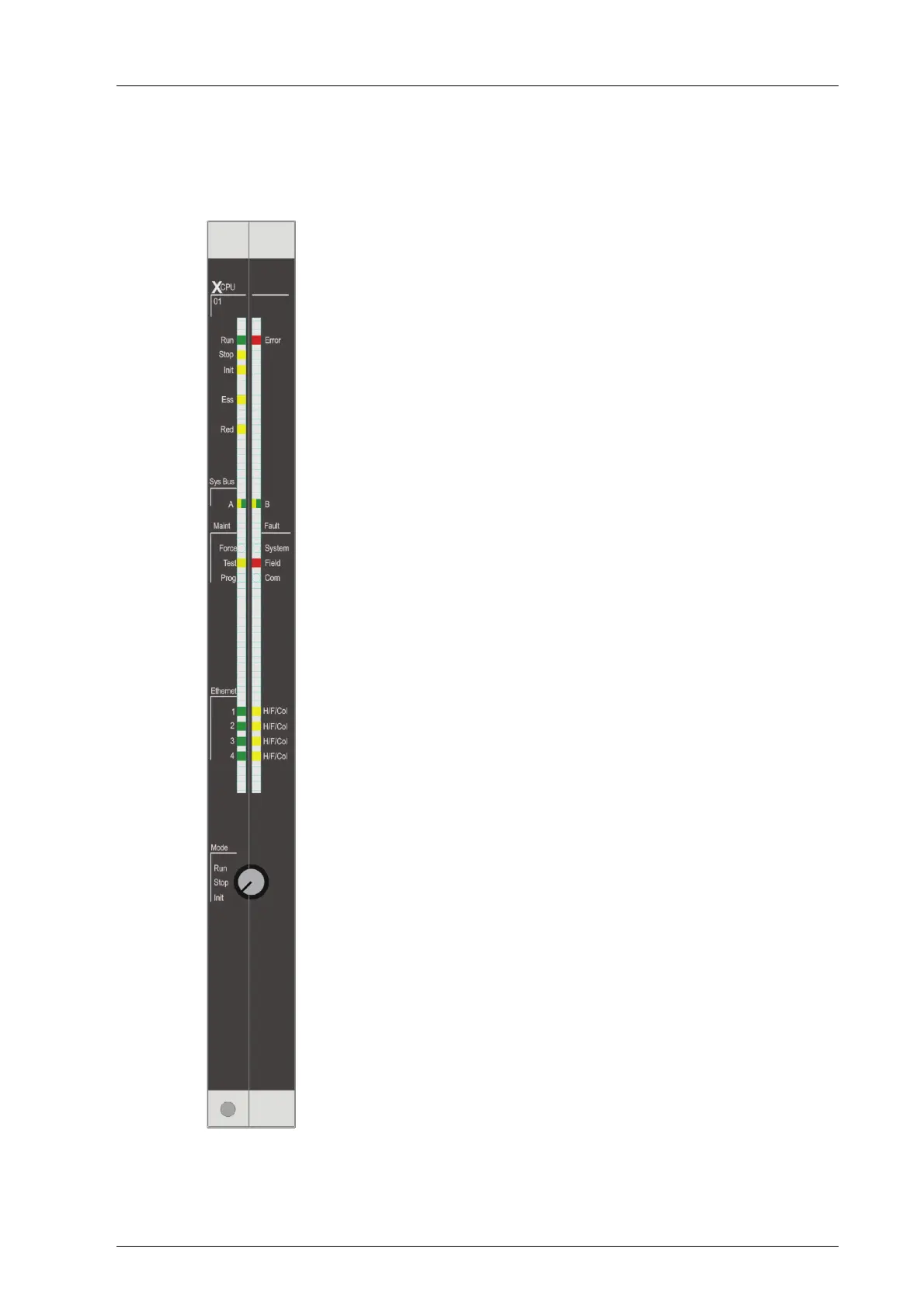

Figure 4: Front View with LEDs and Mode Switch
