Chapter 2 Measurement Procedure
――――――――――――――――――――――――
Power supply side
Load
Fi
g

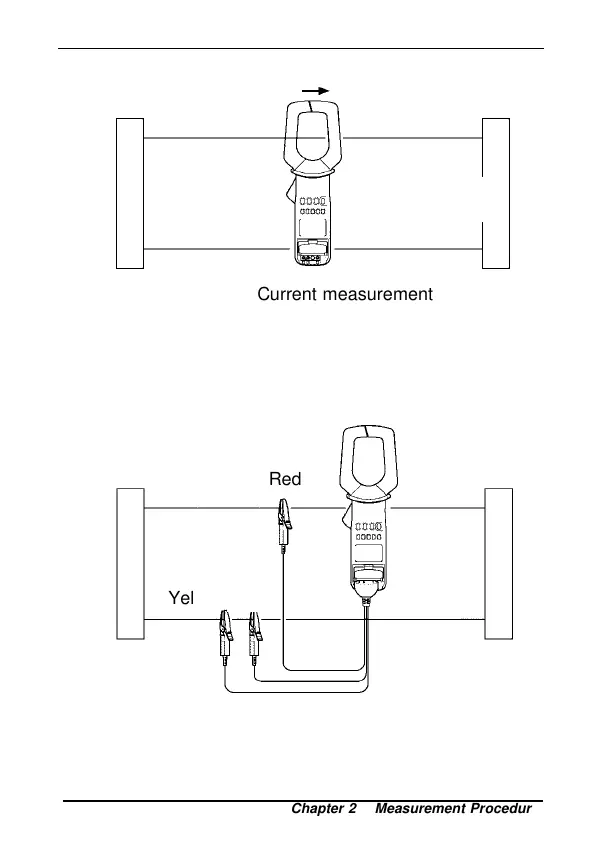

ure 6. Current measurement
Red
Yellow
Black
Load
Power supply side
Fi
g
ure 7. Volta
g
e measurement
[Current measurement]
When only measuring current, the orientation of the
clamp sensor is irrelevant. Moreover, the voltage
cord need not be connected to the instrument.
[Voltage measurement]
When only measuring voltage, the clamp sensor
need not be clamped.
