Chapter 2 Measurement Procedure
――――――――――――――――――――――――
I/ key
U/
key
AUTO
range
150 V
range
300 V
range
600 V
range
AUTO
range
20 A
range
200 A
range
1000 A
range
Table 1.
Range Composition for Single-Phase Power Measurement
U Voltage range
I 150.0 V 300.0 V 600 V
Current
range
20.00 A 3.000 k 6.000 k 12.00 k
200.0 A 30.00 k 60.00 k 120.0 k
1000 A 150.0 k 300.0 k 600.0 k
Unit [W] or [VA] or [var]

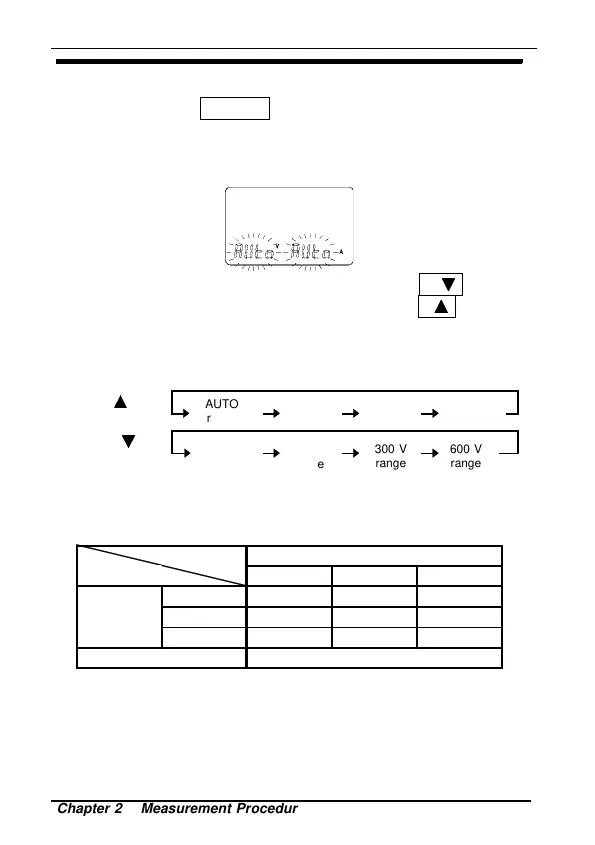

2.3 Range Setup
1. Press the
RANGE
key. The voltage range then
appears on Display 2 and current range on Display
3. In this condition, Display 2 and Display 3
should be blinking.
2. To change the voltage range, press the
U/
key.
To change the current range, press the
I/
key.
The power range varies with the combination of
voltage and current ranges as listed in Tables 1 and
2.
